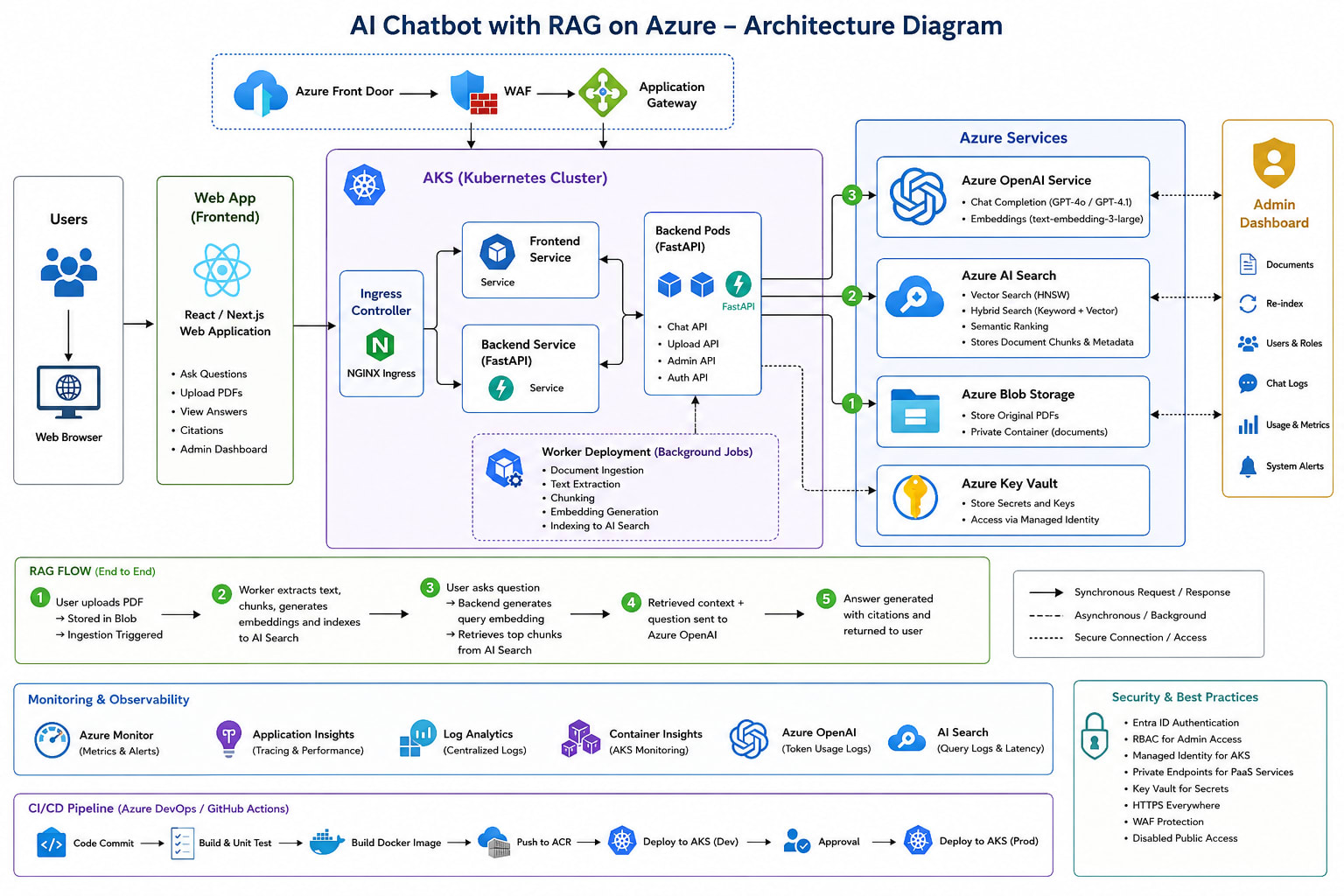

AI Chatbot with RAG on Azure

az provider register --namespace Microsoft.ContainerService   # AKS
az provider register --namespace Microsoft.ContainerRegistry  # ACR
az provider register --namespace Microsoft.KeyVault
az provider register --namespace Microsoft.Storage
az provider register --namespace Microsoft.CognitiveServices  # Azure OpenAI
az provider register --namespace Microsoft.Search             # AI Search
az provider register --namespace Microsoft.Network
az provider register --namespace Microsoft.Insights
az provider register --namespace Microsoft.OperationalInsights

# Set these once — every command below references them
LOCATION="eastus"
RG="rg-rag-chatbot"
PREFIX="ragbot"
SUBSCRIPTION=$(az account show --query id -o tsv)

az group create \
  --name $RG \
  --location $LOCATION \
  --tags project=rag-chatbot environment=dev

echo "Resource group created: $RG in $LOCATION"

STORAGE_NAME="${PREFIX}docs$(openssl rand -hex 4)"

az storage account create \
  --name $STORAGE_NAME \
  --resource-group $RG \
  --location $LOCATION \
  --sku Standard_LRS \
  --kind StorageV2 \
  --allow-blob-public-access false \
  --min-tls-version TLS1_2

# Create a container for uploaded documents
az storage container create \
  --name docs \
  --account-name $STORAGE_NAME \
  --auth-mode login

echo "Storage account: $STORAGE_NAME"
echo "Container: docs"

SEARCH_NAME="${PREFIX}-search"

az search service create \
  --name $SEARCH_NAME \
  --resource-group $RG \
  --location $LOCATION \
  --sku basic \
  --partition-count 1 \
  --replica-count 1

# Wait for provisioning (~2 minutes)
az search service show \
  --name $SEARCH_NAME \
  --resource-group $RG \
  --query provisioningState

# Get admin key (needed to create the index)
SEARCH_ADMIN_KEY=$(az search admin-key show \
  --service-name $SEARCH_NAME \
  --resource-group $RG \
  --query primaryKey -o tsv)

echo "Search endpoint: https://${SEARCH_NAME}.search.windows.net"

# scripts/create_index.py
import os
from azure.search.documents.indexes import SearchIndexClient
from azure.search.documents.indexes.models import (
    SearchIndex, SimpleField, SearchFieldDataType,
    SearchableField, SearchField, VectorSearch,
    HnswAlgorithmConfiguration, VectorSearchProfile
)
from azure.core.credentials import AzureKeyCredential

endpoint = os.environ["AZURE_SEARCH_ENDPOINT"]
key = os.environ["AZURE_SEARCH_KEY"]

client = SearchIndexClient(endpoint, AzureKeyCredential(key))

fields = [
    SimpleField(name="id", type=SearchFieldDataType.String, key=True),
    SearchableField(name="content", type=SearchFieldDataType.String),
    SimpleField(name="source_file", type=SearchFieldDataType.String, filterable=True),
    SimpleField(name="page_number", type=SearchFieldDataType.Int32),
    SimpleField(name="chunk_index", type=SearchFieldDataType.Int32),
    SearchField(
        name="embedding",
        type=SearchFieldDataType.Collection(SearchFieldDataType.Single),
        vector_search_dimensions=1536,
        vector_search_profile_name="hnsw-profile"
    )
]

vector_search = VectorSearch(
    algorithms=[HnswAlgorithmConfiguration(name="hnsw-algo")],
    profiles=[VectorSearchProfile(name="hnsw-profile", algorithm_configuration_name="hnsw-algo")]
)

index = SearchIndex(name="documents", fields=fields, vector_search=vector_search)
client.create_or_update_index(index)
print("Index created: documents")

AZURE_SEARCH_ENDPOINT="https://${SEARCH_NAME}.search.windows.net" \
AZURE_SEARCH_KEY="$SEARCH_ADMIN_KEY" \
  python scripts/create_index.py

OPENAI_NAME="${PREFIX}-openai"

az cognitiveservices account create \
  --name $OPENAI_NAME \
  --resource-group $RG \
  --location $LOCATION \
  --kind OpenAI \
  --sku S0 \
  --yes

# Wait ~3 minutes for provisioning
# Deploy GPT-4o for chat completions
az cognitiveservices account deployment create \
  --name $OPENAI_NAME \
  --resource-group $RG \
  --deployment-name gpt-4o \
  --model-name gpt-4o \
  --model-version "2024-11-20" \
  --model-format OpenAI \
  --sku-capacity 10 \
  --sku-name "Standard"

# Deploy text-embedding-3-small for embeddings
az cognitiveservices account deployment create \
  --name $OPENAI_NAME \
  --resource-group $RG \
  --deployment-name text-embedding-3-small \
  --model-name text-embedding-3-small \
  --model-version "1" \
  --model-format OpenAI \
  --sku-capacity 10 \
  --sku-name "Standard"

OPENAI_ENDPOINT=$(az cognitiveservices account show \
  --name $OPENAI_NAME \
  --resource-group $RG \
  --query properties.endpoint -o tsv)

echo "OpenAI endpoint: $OPENAI_ENDPOINT"

KV_NAME="${PREFIX}-kv-$(openssl rand -hex 3)"

az keyvault create \
  --name $KV_NAME \
  --resource-group $RG \
  --location $LOCATION \
  --sku standard \
  --enable-rbac-authorization true \
  --enable-soft-delete true \
  --soft-delete-retention-days 90

# Store the secrets we have so far
OPENAI_KEY=$(az cognitiveservices account keys list \
  --name $OPENAI_NAME --resource-group $RG --query key1 -o tsv)

az keyvault secret set --vault-name $KV_NAME \
  --name "openai-api-key" --value "$OPENAI_KEY"

az keyvault secret set --vault-name $KV_NAME \
  --name "openai-endpoint" --value "$OPENAI_ENDPOINT"

az keyvault secret set --vault-name $KV_NAME \
  --name "search-endpoint" --value "https://${SEARCH_NAME}.search.windows.net"

az keyvault secret set --vault-name $KV_NAME \
  --name "search-admin-key" --value "$SEARCH_ADMIN_KEY"

STORAGE_CONN=$(az storage account show-connection-string \
  --name $STORAGE_NAME --resource-group $RG --query connectionString -o tsv)

az keyvault secret set --vault-name $KV_NAME \
  --name "storage-connection-string" --value "$STORAGE_CONN"

echo "Key Vault: $KV_NAME — 5 secrets stored"

rag-chatbot/
├── backend/
│   ├── app/
│   │   ├── main.py              # FastAPI app + routes
│   │   ├── ingest.py            # Upload + chunking + embedding
│   │   ├── chat.py              # RAG retrieval + GPT completion
│   │   ├── config.py            # Key Vault secret loading
│   │   └── models.py            # Pydantic request/response models
│   ├── Dockerfile
│   └── requirements.txt
├── frontend/
│   ├── app/
│   │   ├── page.tsx             # Home — chat interface
│   │   ├── components/
│   │   │   ├── ChatInterface.tsx
│   │   │   ├── MessageList.tsx
│   │   │   └── FileUpload.tsx
│   │   └── api/
│   │       └── chat/route.ts    # Next.js Server Action → backend
│   ├── Dockerfile
│   └── package.json
├── helm/
│   └── rag-chatbot/
│       ├── Chart.yaml
│       ├── values.yaml
│       ├── values-prod.yaml
│       └── templates/
│           ├── deployment-backend.yaml
│           ├── deployment-frontend.yaml
│           ├── service.yaml
│           ├── ingress.yaml
│           ├── hpa.yaml
│           └── serviceaccount.yaml
├── .github/
│   └── workflows/
│       ├── ci.yml               # Build + test + scan
│       └── deploy.yml           # Push ACR + deploy AKS
└── scripts/
    ├── create_index.py
    └── bootstrap.sh

import os
from functools import lru_cache
from azure.identity import DefaultAzureCredential
from azure.keyvault.secrets import SecretClient

@lru_cache(maxsize=None)
def get_secret(name: str) -> str:
    kv_uri = os.environ["KEY_VAULT_URI"]  # only env var the app needs
    client = SecretClient(vault_url=kv_uri, credential=DefaultAzureCredential())
    return client.get_secret(name).value

import hashlib
import io
from typing import BinaryIO
from langchain.text_splitter import RecursiveCharacterTextSplitter
from openai import AzureOpenAI
from azure.storage.blob import BlobServiceClient
from azure.search.documents import SearchClient
from azure.core.credentials import AzureKeyCredential
from .config import get_secret

def get_openai_client() -> AzureOpenAI:
    return AzureOpenAI(
        azure_endpoint=get_secret("openai-endpoint"),
        api_key=get_secret("openai-api-key"),
        api_version="2024-10-21",
    )

def embed(texts: list[str]) -> list[list[float]]:
    client = get_openai_client()
    response = client.embeddings.create(
        input=texts,
        model="text-embedding-3-small",
    )
    return [item.embedding for item in response.data]

def get_search_client() -> SearchClient:
    return SearchClient(
        endpoint=get_secret("search-endpoint"),
        index_name="documents",
        credential=AzureKeyCredential(get_secret("search-admin-key")),
    )

def upload_to_blob(filename: str, content: bytes) -> str:
    conn_str = get_secret("storage-connection-string")
    blob_client = BlobServiceClient.from_connection_string(conn_str)
    container = blob_client.get_container_client("docs")
    container.upload_blob(name=filename, data=content, overwrite=True)
    return filename

def extract_text(filename: str, content: bytes) -> str:
    if filename.endswith(".pdf"):
        import pypdf
        reader = pypdf.PdfReader(io.BytesIO(content))
        return "\n".join(page.extract_text() or "" for page in reader.pages)
    elif filename.endswith(".docx"):
        import docx
        doc = docx.Document(io.BytesIO(content))
        return "\n".join(para.text for para in doc.paragraphs)
    elif filename.endswith(".txt"):
        return content.decode("utf-8", errors="replace")
    else:
        raise ValueError(f"Unsupported file type: {filename}")

def ingest_document(filename: str, content: bytes) -> dict:
    # 1. Store raw file in Blob Storage
    upload_to_blob(filename, content)

    # 2. Extract text
    text = extract_text(filename, content)

    # 3. Chunk into 512-token segments with 64-token overlap
    splitter = RecursiveCharacterTextSplitter(chunk_size=512, chunk_overlap=64)
    chunks = splitter.split_text(text)

    # 4. Get embeddings for all chunks (batch of 100)
    all_embeddings = []
    for i in range(0, len(chunks), 100):
        batch = chunks[i : i + 100]
        all_embeddings.extend(embed(batch))

    # 5. Build search documents
    documents = []
    file_hash = hashlib.md5(content).hexdigest()[:8]
    for idx, (chunk, embedding) in enumerate(zip(chunks, all_embeddings)):
        documents.append({
            "id": f"{file_hash}-{idx}",
            "content": chunk,
            "source_file": filename,
            "page_number": 0,
            "chunk_index": idx,
            "embedding": embedding,
        })

    # 6. Upload to AI Search index
    search = get_search_client()
    results = search.upload_documents(documents=documents)
    succeeded = sum(1 for r in results if r.succeeded)

    return {
        "filename": filename,
        "chunks": len(chunks),
        "indexed": succeeded,
    }

from typing import AsyncGenerator
from openai import AzureOpenAI
from azure.search.documents import SearchClient
from azure.search.documents.models import VectorizedQuery
from azure.core.credentials import AzureKeyCredential
from .config import get_secret

SYSTEM_PROMPT = """You are a helpful assistant. Answer questions based ONLY on the context provided below.
If the answer is not in the context, say "I don't know based on the provided documents."
Do not use any knowledge outside the provided context. Cite the source file when possible."""

def retrieve_chunks(query: str, top_k: int = 5) -> list[dict]:
    # Embed the user's query
    from openai import AzureOpenAI
    openai_client = AzureOpenAI(
        azure_endpoint=get_secret("openai-endpoint"),
        api_key=get_secret("openai-api-key"),
        api_version="2024-10-21",
    )
    query_embedding = openai_client.embeddings.create(
        input=[query],
        model="text-embedding-3-small",
    ).data[0].embedding

    # Hybrid search: vector similarity + BM25 keyword match
    search_client = SearchClient(
        endpoint=get_secret("search-endpoint"),
        index_name="documents",
        credential=AzureKeyCredential(get_secret("search-admin-key")),
    )
    results = search_client.search(
        search_text=query,  # BM25 keyword search
        vector_queries=[
            VectorizedQuery(
                vector=query_embedding,
                k_nearest_neighbors=top_k,
                fields="embedding",
            )
        ],
        top=top_k,
        select=["content", "source_file", "chunk_index"],
    )
    return [{"content": r["content"], "source": r["source_file"]} for r in results]

def build_context(chunks: list[dict]) -> str:
    parts = []
    for i, chunk in enumerate(chunks, 1):
        parts.append(f"[Source: {chunk['source']}]\n{chunk['content']}")
    return "\n\n---\n\n".join(parts)

async def stream_chat(
    question: str, history: list[dict]
) -> AsyncGenerator[str, None]:
    chunks = retrieve_chunks(question)
    context = build_context(chunks)

    messages = [
        {"role": "system", "content": SYSTEM_PROMPT},
        {"role": "user", "content": f"Context:\n{context}\n\nQuestion: {question}"},
    ]

    openai_client = AzureOpenAI(
        azure_endpoint=get_secret("openai-endpoint"),
        api_key=get_secret("openai-api-key"),
        api_version="2024-10-21",
    )

    stream = openai_client.chat.completions.create(
        model="gpt-4o",
        messages=messages,
        stream=True,
        temperature=0,
        max_tokens=1024,
    )

    for event in stream:
        if event.choices and event.choices[0].delta.content:
            yield event.choices[0].delta.content

from fastapi import FastAPI, UploadFile, File, HTTPException
from fastapi.responses import StreamingResponse
from fastapi.middleware.cors import CORSMiddleware
from pydantic import BaseModel
from .ingest import ingest_document
from .chat import stream_chat

app = FastAPI(title="RAG Chatbot API", version="1.0.0")

app.add_middleware(
    CORSMiddleware,
    allow_origins=["https://your-frontend-domain.com"],  # tighten before prod
    allow_methods=["GET", "POST"],
    allow_headers=["*"],
)

class ChatRequest(BaseModel):
    question: str
    history: list[dict] = []

@app.get("/health")
def health():
    return {"status": "healthy"}

@app.post("/upload")
async def upload(file: UploadFile = File(...)):
    if file.size and file.size > 50 * 1024 * 1024:  # 50MB limit
        raise HTTPException(status_code=413, detail="File too large (max 50MB)")
    allowed = {".pdf", ".docx", ".txt"}
    suffix = "." + file.filename.rsplit(".", 1)[-1].lower()
    if suffix not in allowed:
        raise HTTPException(status_code=400, detail=f"Unsupported type. Allowed: {allowed}")
    content = await file.read()
    result = ingest_document(file.filename, content)
    return result

@app.post("/chat")
async def chat(req: ChatRequest):
    async def generate():
        async for token in stream_chat(req.question, req.history):
            yield f"data: {token}\n\n"
        yield "data: [DONE]\n\n"

    return StreamingResponse(generate(), media_type="text/event-stream")

fastapi==0.111.0
uvicorn[standard]==0.29.0
python-multipart==0.0.9
openai==1.35.3
azure-identity==1.17.1
azure-keyvault-secrets==4.8.0
azure-search-documents==11.6.0
azure-storage-blob==12.20.0
langchain-text-splitters==0.2.1
pypdf==4.2.0
python-docx==1.1.2
pydantic==2.7.3

cd frontend
npx create-next-app@latest . \
  --typescript \
  --tailwind \
  --eslint \
  --app \
  --no-src-dir \
  --import-alias "@/*"

'use client'
import { useState, useRef, useEffect } from 'react'

interface Message {
  role: 'user' | 'assistant'
  content: string
}

export default function ChatInterface() {
  const [messages, setMessages] = useState<Message[]>([])
  const [input, setInput] = useState('')
  const [loading, setLoading] = useState(false)
  const bottomRef = useRef<HTMLDivElement>(null)

  useEffect(() => {
    bottomRef.current?.scrollIntoView({ behavior: 'smooth' })
  }, [messages])

  async function sendMessage() {
    if (!input.trim() || loading) return
    const question = input.trim()
    setInput('')
    setMessages(prev => [...prev, { role: 'user', content: question }])
    setLoading(true)

    const response = await fetch('/api/chat', {
      method: 'POST',
      headers: { 'Content-Type': 'application/json' },
      body: JSON.stringify({ question, history: messages }),
    })

    if (!response.ok || !response.body) {
      setMessages(prev => [...prev, { role: 'assistant', content: 'Error: could not reach backend.' }])
      setLoading(false)
      return
    }

    // Stream SSE response
    const reader = response.body.getReader()
    const decoder = new TextDecoder()
    let assistantMsg = ''
    setMessages(prev => [...prev, { role: 'assistant', content: '' }])

    while (true) {
      const { done, value } = await reader.read()
      if (done) break
      const text = decoder.decode(value)
      for (const line of text.split('\n')) {
        if (line.startsWith('data: ') && line !== 'data: [DONE]') {
          assistantMsg += line.slice(6)
          setMessages(prev => [
            ...prev.slice(0, -1),
            { role: 'assistant', content: assistantMsg },
          ])
        }
      }
    }
    setLoading(false)
  }

  return (
    <div className="flex flex-col h-screen max-w-3xl mx-auto p-4">
      <div className="flex-1 overflow-y-auto space-y-4 pb-4">
        {messages.map((msg, i) => (
          <div key={i} className={`flex ${msg.role === 'user' ? 'justify-end' : 'justify-start'}`}>
            <div className={`rounded-2xl px-4 py-2 max-w-[80%] whitespace-pre-wrap text-sm
              ${msg.role === 'user'
                ? 'bg-violet-600 text-white'
                : 'bg-gray-800 text-gray-100'}`}>
              {msg.content}
            </div>
          </div>
        ))}
        {loading && (
          <div className="flex justify-start">
            <div className="bg-gray-800 text-gray-400 rounded-2xl px-4 py-2 text-sm">
              Thinking…
            </div>
          </div>
        )}
        <div ref={bottomRef}/>
      </div>
      <div className="flex gap-2 mt-4">
        <input
          className="flex-1 bg-gray-800 text-white rounded-xl px-4 py-2 text-sm outline-none focus:ring-2 focus:ring-violet-500"
          value={input}
          onChange={e => setInput(e.target.value)}
          onKeyDown={e => e.key === 'Enter' && sendMessage()}
          placeholder="Ask a question about your documents…"
        />
        <button
          onClick={sendMessage}
          disabled={loading}
          className="bg-violet-600 hover:bg-violet-700 disabled:opacity-50 text-white rounded-xl px-5 py-2 text-sm font-medium"
        >
          Send
        </button>
      </div>
    </div>
  )
}

import { NextRequest } from 'next/server'

const BACKEND_URL = process.env.BACKEND_URL ?? 'http://localhost:8000'

export async function POST(req: NextRequest) {
  const body = await req.json()

  const upstream = await fetch(`${BACKEND_URL}/chat`, {
    method: 'POST',
    headers: { 'Content-Type': 'application/json' },
    body: JSON.stringify(body),
  })

  if (!upstream.ok) {
    return new Response('Backend error', { status: upstream.status })
  }

  return new Response(upstream.body, {
    headers: {
      'Content-Type': 'text/event-stream',
      'Cache-Control': 'no-cache',
      'Connection': 'keep-alive',
    },
  })
}

'use client'
import { useState } from 'react'

export default function FileUpload() {
  const [status, setStatus] = useState<string>('')
  const [uploading, setUploading] = useState(false)

  async function handleFile(e: React.ChangeEvent<HTMLInputElement>) {
    const file = e.target.files?.[0]
    if (!file) return
    setUploading(true)
    setStatus(`Uploading ${file.name}…`)

    const form = new FormData()
    form.append('file', file)

    const res = await fetch(`${process.env.NEXT_PUBLIC_BACKEND_URL}/upload`, {
      method: 'POST',
      body: form,
    })

    if (res.ok) {
      const data = await res.json()
      setStatus(`✓ Indexed ${data.chunks} chunks from ${data.filename}`)
    } else {
      setStatus(`✗ Upload failed: ${res.statusText}`)
    }
    setUploading(false)
    e.target.value = ''
  }

  return (
    <div className="p-4 border border-dashed border-violet-500/40 rounded-xl">
      <label className="cursor-pointer text-sm text-violet-300 hover:text-violet-100">
        {uploading ? 'Processing…' : '+ Upload a PDF, DOCX, or TXT file'}
        <input
          type="file"
          accept=".pdf,.docx,.txt"
          className="hidden"
          onChange={handleFile}
          disabled={uploading}
        />
      </label>
      {status && <p className="mt-2 text-xs text-gray-400">{status}</p>}
    </div>
  )
}

FROM python:3.11-slim AS builder
WORKDIR /app
RUN apt-get update && apt-get install -y --no-install-recommends build-essential && rm -rf /var/lib/apt/lists/*
COPY requirements.txt .
RUN pip install --no-cache-dir --user -r requirements.txt

FROM python:3.11-slim
WORKDIR /app
COPY --from=builder /root/.local /root/.local
COPY app/ ./app/
ENV PATH=/root/.local/bin:$PATH
ENV PYTHONPATH=/app
EXPOSE 8000
HEALTHCHECK --interval=30s --timeout=5s --retries=3 CMD curl -f http://localhost:8000/health || exit 1
CMD ["uvicorn", "app.main:app", "--host", "0.0.0.0", "--port", "8000", "--workers", "2"]

FROM node:20-alpine AS deps
WORKDIR /app
COPY package.json package-lock.json ./
RUN npm ci --only=production

FROM node:20-alpine AS builder
WORKDIR /app
COPY --from=deps /app/node_modules ./node_modules
COPY . .
ARG NEXT_PUBLIC_BACKEND_URL
ENV NEXT_PUBLIC_BACKEND_URL=$NEXT_PUBLIC_BACKEND_URL
RUN npm run build

FROM node:20-alpine AS runner
WORKDIR /app
ENV NODE_ENV=production
COPY --from=builder /app/public ./public
COPY --from=builder /app/.next/standalone ./
COPY --from=builder /app/.next/static ./.next/static
EXPOSE 3000
HEALTHCHECK --interval=30s --timeout=5s CMD wget -qO- http://localhost:3000 || exit 1
CMD ["node", "server.js"]

ACR_NAME="${PREFIX}acr$(openssl rand -hex 3)"

az acr create \
  --name $ACR_NAME \
  --resource-group $RG \
  --location $LOCATION \
  --sku Basic \
  --admin-enabled false

echo "ACR: ${ACR_NAME}.azurecr.io"

# Build and push backend image locally (dev testing)
az acr build \
  --registry $ACR_NAME \
  --image "rag-backend:dev-$(git rev-parse --short HEAD)" \
  ./backend

# Build and push frontend image
az acr build \
  --registry $ACR_NAME \
  --image "rag-frontend:dev-$(git rev-parse --short HEAD)" \
  ./frontend

AKS_NAME="${PREFIX}-aks"

az aks create \
  --name $AKS_NAME \
  --resource-group $RG \
  --location $LOCATION \
  --node-count 2 \
  --node-vm-size Standard_D2s_v3 \
  --enable-oidc-issuer \
  --enable-workload-identity \
  --enable-managed-identity \
  --attach-acr $ACR_NAME \
  --network-plugin azure \
  --enable-cluster-autoscaler \
  --min-count 2 \
  --max-count 5 \
  --generate-ssh-keys

# Get credentials
az aks get-credentials \
  --resource-group $RG \
  --name $AKS_NAME \
  --overwrite-existing

# Verify cluster is up
kubectl get nodes

# Create managed identity for the backend
IDENTITY_NAME="mi-rag-backend"
az identity create \
  --name $IDENTITY_NAME \
  --resource-group $RG \
  --location $LOCATION

IDENTITY_CLIENT_ID=$(az identity show \
  --name $IDENTITY_NAME \
  --resource-group $RG \
  --query clientId -o tsv)

IDENTITY_OBJECT_ID=$(az identity show \
  --name $IDENTITY_NAME \
  --resource-group $RG \
  --query principalId -o tsv)

# Grant Key Vault Secrets User to the managed identity
KV_ID=$(az keyvault show --name $KV_NAME --resource-group $RG --query id -o tsv)
az role assignment create \
  --role "Key Vault Secrets User" \
  --assignee-object-id $IDENTITY_OBJECT_ID \
  --scope $KV_ID

# Create federated credential — links the Kubernetes service account to the MI
AKS_OIDC_ISSUER=$(az aks show \
  --name $AKS_NAME \
  --resource-group $RG \
  --query "oidcIssuerProfile.issuerUrl" -o tsv)

az identity federated-credential create \
  --name "rag-backend-fedcred" \
  --identity-name $IDENTITY_NAME \
  --resource-group $RG \
  --issuer "$AKS_OIDC_ISSUER" \
  --subject "system:serviceaccount:default:rag-backend-sa" \
  --audience "api://AzureADTokenExchange"

echo "Managed Identity client ID: $IDENTITY_CLIENT_ID"

apiVersion: v1
kind: ServiceAccount
metadata:
  name: rag-backend-sa
  namespace: {{ .Values.namespace }}
  annotations:
    azure.workload.identity/client-id: {{ .Values.identity.clientId }}
  labels:
    azure.workload.identity/use: "true"

apiVersion: apps/v1
kind: Deployment
metadata:
  name: rag-backend
  namespace: {{ .Values.namespace }}
spec:
  replicas: {{ .Values.backend.replicas }}
  selector:
    matchLabels:
      app: rag-backend
  template:
    metadata:
      labels:
        app: rag-backend
        azure.workload.identity/use: "true"
    spec:
      serviceAccountName: rag-backend-sa
      containers:
        - name: backend
          image: {{ .Values.acr }}/rag-backend:{{ .Values.imageTag }}
          ports:
            - containerPort: 8000
          env:
            - name: KEY_VAULT_URI
              value: {{ .Values.keyVaultUri }}
          resources:
            requests:
              cpu: 250m
              memory: 512Mi
            limits:
              cpu: 1000m
              memory: 1Gi
          livenessProbe:
            httpGet:
              path: /health
              port: 8000
            initialDelaySeconds: 30
            periodSeconds: 15
          readinessProbe:
            httpGet:
              path: /health
              port: 8000
            initialDelaySeconds: 10
            periodSeconds: 5

namespace: default
acr: yourregistry.azurecr.io
imageTag: latest
keyVaultUri: https://your-kv.vault.azure.net/

identity:
  clientId: ""   # set via --set during deploy

backend:
  replicas: 2

frontend:
  replicas: 2
  backendUrl: http://rag-backend-svc:8000

ingress:
  enabled: true
  host: chat.yourdomain.com
  tlsSecretName: chat-tls

helm upgrade --install rag-chatbot ./helm/rag-chatbot \
  --namespace default \
  --set acr="${ACR_NAME}.azurecr.io" \
  --set imageTag="$(git rev-parse --short HEAD)" \
  --set keyVaultUri="$(az keyvault show --name $KV_NAME --resource-group $RG --query properties.vaultUri -o tsv)" \
  --set identity.clientId="$IDENTITY_CLIENT_ID" \
  --set ingress.host="chat.yourdomain.com" \
  --wait --timeout 5m

# Install NGINX ingress controller
helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx
helm repo update

helm upgrade --install ingress-nginx ingress-nginx/ingress-nginx \
  --namespace ingress-nginx \
  --create-namespace \
  --set controller.service.annotations."service\.beta\.kubernetes\.io/azure-load-balancer-health-probe-request-path"=/healthz \
  --wait

# Get the external IP
kubectl get svc -n ingress-nginx ingress-nginx-controller

helm repo add jetstack https://charts.jetstack.io
helm upgrade --install cert-manager jetstack/cert-manager \
  --namespace cert-manager \
  --create-namespace \
  --set crds.enabled=true \
  --wait

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: rag-chatbot-ingress
  namespace: {{ .Values.namespace }}
  annotations:
    nginx.ingress.kubernetes.io/ssl-redirect: "true"
    cert-manager.io/cluster-issuer: letsencrypt-prod
spec:
  ingressClassName: nginx
  tls:
    - hosts:
        - {{ .Values.ingress.host }}
      secretName: {{ .Values.ingress.tlsSecretName }}
  rules:
    - host: {{ .Values.ingress.host }}
      http:
        paths:
          - path: /api
            pathType: Prefix
            backend:
              service:
                name: rag-backend-svc
                port:
                  number: 8000
          - path: /
            pathType: Prefix
            backend:
              service:
                name: rag-frontend-svc
                port:
                  number: 3000

# Verify workload identity is working from inside a pod
kubectl run -it debug --image=curlimages/curl --rm -- \
  curl -H "Metadata: true" \
  "http://169.254.169.254/metadata/identity/oauth2/token?api-version=2018-02-01&resource=https://vault.azure.net"
# Should return: {"access_token":"eyJ...","expires_in":"..."}

from slowapi import Limiter, _rate_limit_exceeded_handler
from slowapi.util import get_remote_address
from slowapi.errors import RateLimitExceeded

limiter = Limiter(key_func=get_remote_address)
app.state.limiter = limiter
app.add_exception_handler(RateLimitExceeded, _rate_limit_exceeded_handler)

@app.post("/chat")
@limiter.limit("100/minute")
async def chat(req: ChatRequest, request: Request):
    # Prompt injection guard
    if len(req.question) > 50_000:
        raise HTTPException(status_code=400, detail="Question too long")
    # Basic injection detection (expand based on your threat model)
    forbidden = ["ignore previous instructions", "system prompt", "jailbreak"]
    lower_q = req.question.lower()
    if any(phrase in lower_q for phrase in forbidden):
        raise HTTPException(status_code=400, detail="Invalid input")
    ...

name: CI

on:
  push:
    branches: [main]
  pull_request:
    branches: [main]

env:
  ACR_NAME: ${{ secrets.ACR_NAME }}
  REGISTRY: ${{ secrets.ACR_NAME }}.azurecr.io

jobs:
  test-backend:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - uses: actions/setup-python@v5
        with:
          python-version: '3.11'
          cache: pip
      - run: pip install -r backend/requirements.txt pytest ruff
      - run: ruff check backend/
      - run: pytest backend/ -v

  test-frontend:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - uses: actions/setup-node@v4
        with:
          node-version: '20'
          cache: npm
          cache-dependency-path: frontend/package-lock.json
      - run: npm ci --prefix frontend
      - run: npm run build --prefix frontend

  build-and-push:
    needs: [test-backend, test-frontend]
    runs-on: ubuntu-latest
    if: github.ref == 'refs/heads/main'
    permissions:
      id-token: write
      contents: read
    steps:
      - uses: actions/checkout@v4

      - name: Azure login
        uses: azure/login@v2
        with:
          client-id: ${{ secrets.AZURE_CLIENT_ID }}
          tenant-id: ${{ secrets.AZURE_TENANT_ID }}
          subscription-id: ${{ secrets.AZURE_SUBSCRIPTION_ID }}

      - name: ACR login
        run: az acr login --name ${{ env.ACR_NAME }}

      - name: Build and push backend
        run: |
          docker build -t $REGISTRY/rag-backend:${{ github.sha }} ./backend
          docker push $REGISTRY/rag-backend:${{ github.sha }}

      - name: Trivy scan backend
        uses: aquasecurity/trivy-action@master
        with:
          image-ref: ${{ env.REGISTRY }}/rag-backend:${{ github.sha }}
          exit-code: '1'
          severity: HIGH,CRITICAL

      - name: Build and push frontend
        run: |
          docker build \
            --build-arg NEXT_PUBLIC_BACKEND_URL=${{ secrets.BACKEND_URL }} \
            -t $REGISTRY/rag-frontend:${{ github.sha }} \
            ./frontend
          docker push $REGISTRY/rag-frontend:${{ github.sha }}

name: Deploy

on:
  workflow_run:
    workflows: [CI]
    types: [completed]
    branches: [main]

jobs:
  deploy-staging:
    if: ${{ github.event.workflow_run.conclusion == 'success' }}
    runs-on: ubuntu-latest
    environment: staging
    permissions:
      id-token: write
      contents: read
    steps:
      - uses: actions/checkout@v4

      - name: Azure login
        uses: azure/login@v2
        with:
          client-id: ${{ secrets.AZURE_CLIENT_ID }}
          tenant-id: ${{ secrets.AZURE_TENANT_ID }}
          subscription-id: ${{ secrets.AZURE_SUBSCRIPTION_ID }}

      - name: Get AKS credentials
        run: az aks get-credentials -g ${{ secrets.RG }} -n ${{ secrets.AKS_NAME }}

      - name: Deploy to staging
        run: |
          helm upgrade --install rag-chatbot ./helm/rag-chatbot \
            --namespace staging \
            --create-namespace \
            --set imageTag=${{ github.sha }} \
            --set acr=${{ secrets.ACR_NAME }}.azurecr.io \
            --set keyVaultUri=${{ secrets.KV_URI }} \
            --set identity.clientId=${{ secrets.MI_CLIENT_ID }} \
            --set ingress.host=staging-chat.yourdomain.com \
            --wait --timeout 5m

  deploy-prod:
    needs: deploy-staging
    runs-on: ubuntu-latest
    environment: production   # requires manual approval in GitHub Environments
    permissions:
      id-token: write
      contents: read
    steps:
      - uses: actions/checkout@v4

      - name: Azure login
        uses: azure/login@v2
        with:
          client-id: ${{ secrets.AZURE_CLIENT_ID }}
          tenant-id: ${{ secrets.AZURE_TENANT_ID }}
          subscription-id: ${{ secrets.AZURE_SUBSCRIPTION_ID }}

      - name: Get AKS credentials
        run: az aks get-credentials -g ${{ secrets.RG }} -n ${{ secrets.AKS_NAME }}

      - name: Deploy to production
        run: |
          helm upgrade --install rag-chatbot ./helm/rag-chatbot \
            --namespace default \
            --set imageTag=${{ github.sha }} \
            --set acr=${{ secrets.ACR_NAME }}.azurecr.io \
            --set keyVaultUri=${{ secrets.KV_URI }} \
            --set identity.clientId=${{ secrets.MI_CLIENT_ID }} \
            --set ingress.host=chat.yourdomain.com \
            --wait --timeout 5m

      - name: Notify Slack
        if: always()
        uses: slackapi/slack-github-action@v1
        with:
          payload: '{"text":"${{ job.status == ''success'' && ''✓'' || ''✗'' }} RAG Chatbot deploy to prod: ${{ job.status }} (${{ github.sha }})"}'
        env:
          SLACK_WEBHOOK_URL: ${{ secrets.SLACK_WEBHOOK }}

# Enable Container Insights on the AKS cluster
az aks enable-addons \
  --name $AKS_NAME \
  --resource-group $RG \
  --addons monitoring \
  --workspace-resource-id $(az monitor log-analytics workspace create \
    --resource-group $RG \
    --workspace-name "${PREFIX}-logs" \
    --query id -o tsv)

// Pod restarts in the last hour
KubePodInventory
| where TimeGenerated > ago(1h)
| where Namespace == "default"
| where ContainerRestartCount > 0
| summarize restarts = sum(ContainerRestartCount) by PodName = Name
| order by restarts desc

// Backend 5xx errors
ContainerLog
| where TimeGenerated > ago(1h)
| where Name contains "rag-backend"
| where LogEntry contains " 5"
| project TimeGenerated, LogEntry
| order by TimeGenerated desc

// Average response latency (from FastAPI logs)
ContainerLog
| where Name contains "rag-backend"
| where LogEntry matches regex @'"duration":\d+'
| extend duration = toint(extract('"duration":(\\d+)', 1, LogEntry))
| summarize avg(duration), percentile(duration, 95) by bin(TimeGenerated, 5m)

az monitor metrics alert create \
  --resource-group $RG \
  --name "rag-backend-pod-restarts" \
  --scopes $(az aks show -g $RG -n $AKS_NAME --query id -o tsv) \
  --condition "avg kube_pod_container_status_restarts_total > 3" \
  --window-size 5m \
  --evaluation-frequency 1m \
  --severity 2

# tests/test_ingest.py
import pytest
from app.ingest import extract_text

def test_extract_pdf():
    with open("tests/fixtures/sample.pdf", "rb") as f:
        text = extract_text("sample.pdf", f.read())
    assert len(text) > 100
    assert isinstance(text, str)

def test_extract_docx():
    with open("tests/fixtures/sample.docx", "rb") as f:
        text = extract_text("sample.docx", f.read())
    assert len(text) > 10

def test_unsupported_type():
    with pytest.raises(ValueError, match="Unsupported file type"):
        extract_text("file.xlsx", b"data")

# tests/test_rag_quality.py
import pytest
from app.chat import retrieve_chunks

@pytest.mark.integration
def test_retrieval_finds_relevant_chunk():
    # Assumes sample.pdf has been ingested already
    chunks = retrieve_chunks("What is the main topic of the document?", top_k=3)
    assert len(chunks) == 3
    assert all("content" in c for c in chunks)

@pytest.mark.integration
def test_retrieval_returns_source():
    chunks = retrieve_chunks("any question", top_k=1)
    assert "source" in chunks[0]
    assert chunks[0]["source"].endswith((".pdf", ".docx", ".txt"))

# tests/locustfile.py
from locust import HttpUser, task, between

class ChatUser(HttpUser):
    wait_time = between(2, 5)

    @task(3)
    def ask_question(self):
        self.client.post("/chat", json={
            "question": "What are the key points in the document?",
            "history": []
        }, timeout=30)

    @task(1)
    def health_check(self):
        self.client.get("/health")

locust -f tests/locustfile.py \
  --host=https://chat.yourdomain.com \
  --users=50 \
  --spawn-rate=5 \
  --run-time=5m \
  --headless

# Delete everything — this is irreversible
az group delete --name $RG --yes --no-wait

# Optional: purge Key Vault (otherwise soft-deleted for 90 days)
az keyvault purge --name $KV_NAME --location $LOCATION

echo "All resources deleted. GitHub Actions will fail on next push — update or delete the secrets."

## AI Chatbot with RAG on Azure

A production-grade Retrieval-Augmented Generation chatbot built on Azure.
Upload any PDF, DOCX, or TXT file, then ask questions about it.
GPT-4o answers using only the content in your documents — no hallucination.

### What this project demonstrates

| Skill area | Implementation |
|------------|---------------|
| AI/ML integration | Azure OpenAI GPT-4o (chat) + text-embedding-3-small (embeddings) |
| Vector search | Azure AI Search with HNSW index, hybrid BM25 + vector retrieval |
| Cloud-native deployment | AKS (private cluster, autoscaler, OIDC Workload Identity) |
| Security | Defense in depth: Network (VNet/NSG) + Identity (no secrets) + Data (Key Vault) + App (rate limiting, prompt injection guard) |
| CI/CD | GitHub Actions: lint → test → Docker build → Trivy scan → ACR push → staging → manual gate → prod |
| Observability | Container Insights, KQL queries, pod restart alerts |
| IaC | Azure CLI provisioning scripts, Helm charts for k8s, ready to migrate to Terraform |

### Architecture

[Full architecture diagram in the project page — AzureFixes.com/projects/ai-chatbot-with-rag-on-azure]

### Quick start (local)

\`\`\`bash
# Backend
cd backend
pip install -r requirements.txt
export KEY_VAULT_URI=https://your-kv.vault.azure.net/
uvicorn app.main:app --reload

# Frontend
cd frontend
npm install
NEXT_PUBLIC_BACKEND_URL=http://localhost:8000 npm run dev
\`\`\`
