Azure AI Incident Troubleshooter

Azure AI Incident Troubleshooter

Activeai

A full-stack AI-powered incident management system that uses Azure OpenAI, Cosmos DB (11 containers, referenced entity model), and Azure AI Search to automatically analyse infrastructure incidents, surface root causes, and recommend remediation actions — built as an end-to-end instructional guide.

Tech Stack

PythonFastAPINext.jsAzure OpenAIAzure AI SearchCosmos DBAKSHelmKey VaultWorkload IdentityGitHub ActionsBicep

When an Azure service degrades at 2 AM, the on-call engineer needs answers faster than a Confluence search can provide them. This project builds an AI-powered incident management system that ingests raw incident data, retrieves relevant runbooks and past resolutions from a vector search index, and produces structured analysis with prioritised remediation steps — all without the engineer having to know which runbook to look at first.

The guide is written for cloud engineers who are comfortable with Azure but new to building AI-driven applications. Every architectural decision is explained with an honest trade-off note. Where simpler alternatives exist, they are called out explicitly.


The high-level architecture

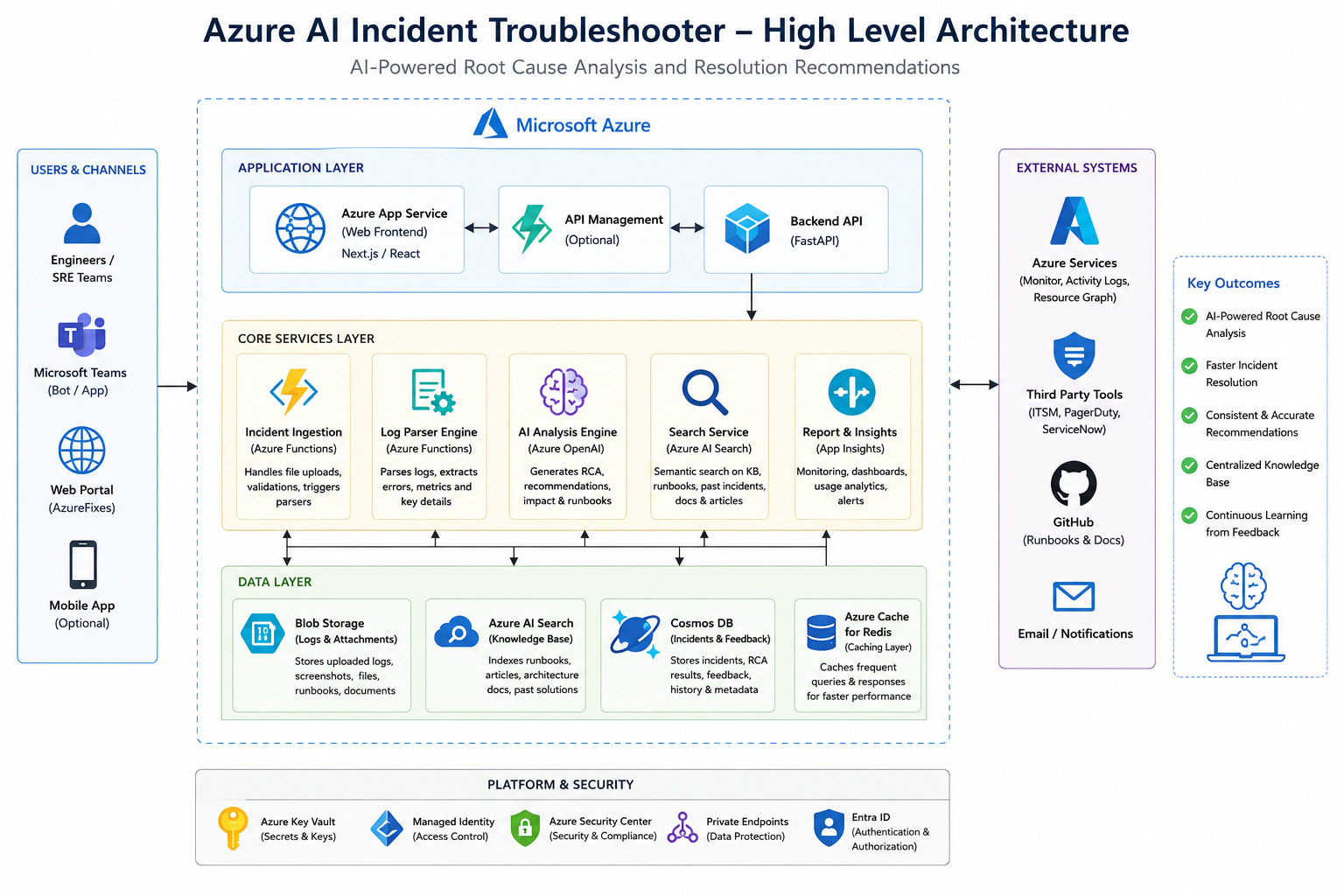

High-level architecture: Front Door → APIM → FastAPI/AKS → Cosmos DB + AI Search + Azure OpenAI → Static Web Apps frontend.

Component decisions at a glance:

LayerTechnologyWhy this, not that
APIFastAPI on AKSAsync streaming, easy Pydantic validation; App Service would work too for lower ops overhead
DatabaseCosmos DB (NoSQL API)Flexible schema for evolving incident fields; SQL DB is a valid alternative if you need joins
Vector searchAzure AI SearchHybrid BM25 + vector in one service; Postgres pgvector is simpler if you already run Postgres
LLMAzure OpenAI GPT-4oRequired for Azure compliance; use OpenAI directly if you're not in a regulated environment
FrontendNext.js on Static Web AppsStatic export + API routes; any React framework on App Service would work
AuthEntra ID + Managed IdentityNo secrets in code; client credentials are acceptable for internal tools

Phase 1: Data flow and analysis pipeline

Before writing code, understand what happens to an incident from the moment it is created to the moment the engineer sees a recommended action.

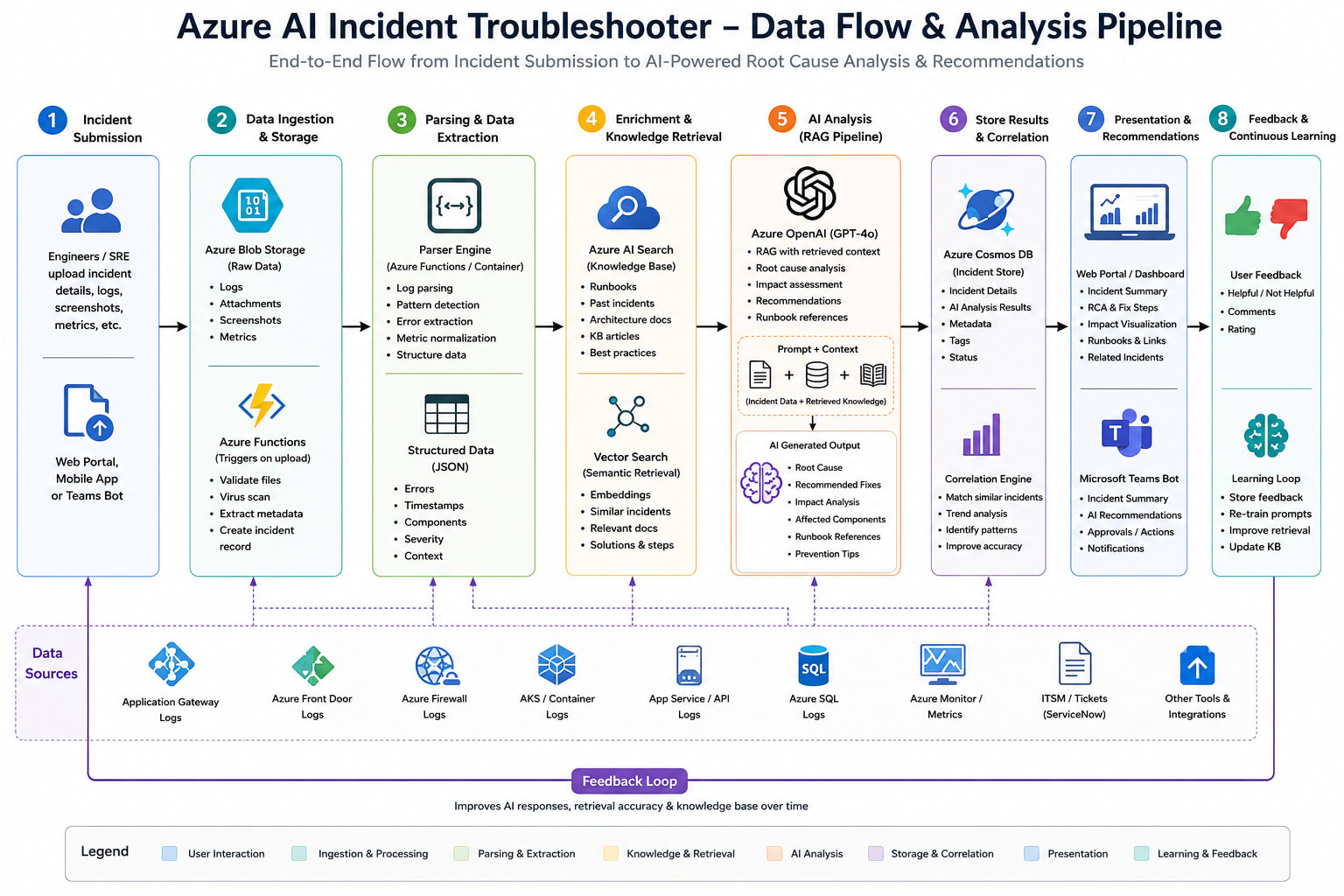

8-stage data flow: incident submission → Pydantic validation → Cosmos write → embed → hybrid search → prompt assembly → GPT-4o → split write to analysisResults + recommendedActions.

The critical design point is stage 8: analysis results and recommended actions are written to separate Cosmos DB containers, not embedded inside the incident document. The next section explains why.


Phase 2: Prerequisites and environment setup

You need the following Azure resources before writing any code. Provision them in this order — some services depend on others being ready first.

# Set your subscription and resource group
SUBSCRIPTION_ID="your-subscription-id"
RESOURCE_GROUP="rg-incident-troubleshooter"
LOCATION="eastus"

az account set --subscription $SUBSCRIPTION_ID
az group create --name $RESOURCE_GROUP --location $LOCATION

Provision Azure OpenAI:

az cognitiveservices account create \
  --name oai-incident-prod \
  --resource-group $RESOURCE_GROUP \
  --location $LOCATION \
  --kind OpenAI \
  --sku S0

# Deploy GPT-4o and text-embedding-3-small
az cognitiveservices account deployment create \
  --name oai-incident-prod \
  --resource-group $RESOURCE_GROUP \
  --deployment-name gpt-4o \
  --model-name gpt-4o \
  --model-version "2024-11-20" \
  --model-format OpenAI \
  --sku-capacity 40 \
  --sku-name Standard

az cognitiveservices account deployment create \
  --name oai-incident-prod \
  --resource-group $RESOURCE_GROUP \
  --deployment-name text-embedding-3-small \
  --model-name text-embedding-3-small \
  --model-version "1" \
  --model-format OpenAI \
  --sku-capacity 120 \
  --sku-name Standard

Provision Cosmos DB:

az cosmosdb create \
  --name cosmos-incident-prod \
  --resource-group $RESOURCE_GROUP \
  --default-consistency-level Session \
  --locations regionName=$LOCATION failoverPriority=0 isZoneRedundant=false

az cosmosdb sql database create \
  --account-name cosmos-incident-prod \
  --resource-group $RESOURCE_GROUP \
  --name IncidentDB

Provision Azure AI Search:

az search service create \
  --name search-incident-prod \
  --resource-group $RESOURCE_GROUP \
  --location $LOCATION \
  --sku Basic

# Note: Basic SKU supports vector search. Standard gives more replicas/partitions.
# For a dev environment, Free SKU (az search service create --sku Free) works
# but is limited to 3 indexes and no SLA.

Provision Key Vault:

az keyvault create \
  --name kv-incident-prod \
  --resource-group $RESOURCE_GROUP \
  --location $LOCATION \
  --enable-soft-delete true \
  --retention-days 90

Phase 3: Project structure

azure-ai-incident-troubleshooter/
├── backend/
│   ├── app/
│   │   ├── main.py                # FastAPI app, middleware, lifespan
│   │   ├── config.py              # Settings from Key Vault via DefaultAzureCredential
│   │   ├── models/
│   │   │   ├── incident.py        # Pydantic models for all 11 entities
│   │   │   └── enums.py           # Severity, IncidentStatus enums
│   │   ├── services/
│   │   │   ├── cosmos_service.py  # Per-entity upsert methods, list_by_incident()
│   │   │   ├── rag_service.py     # Embed + search + GPT-4o  (AnalysisResult, [RecommendedAction])
│   │   │   └── search_service.py  # AI Search index management and hybrid query
│   │   └── routes/
│   │       └── incidents.py       # POST /incidents, GET /incidents/{id}, GET /incidents
│   ├── Dockerfile
│   └── requirements.txt
├── frontend/
│   ├── app/
│   │   ├── page.tsx               # Incident list
│   │   └── incidents/
│   │       ├── new/page.tsx       # Create incident form
│   │       └── [id]/page.tsx      # IncidentDetail view with priority badges
│   ├── components/
│   │   ├── IncidentForm.tsx
│   │   ├── IncidentCard.tsx
│   │   └── RecommendedActionCard.tsx
│   └── lib/
│       └── api.ts                 # Typed fetch wrappers
├── infra/
│   ├── main.bicep
│   ├── modules/
│   │   ├── cosmos.bicep
│   │   ├── openai.bicep
│   │   ├── search.bicep
│   │   └── aks.bicep
│   └── parameters/
│       ├── dev.bicepparam
│       └── prod.bicepparam
├── helm/
│   ├── Chart.yaml
│   └── templates/
│       ├── deployment.yaml
│       ├── service.yaml
│       └── ingress.yaml
└── .github/
    └── workflows/
        ├── ci.yml
        └── deploy.yml

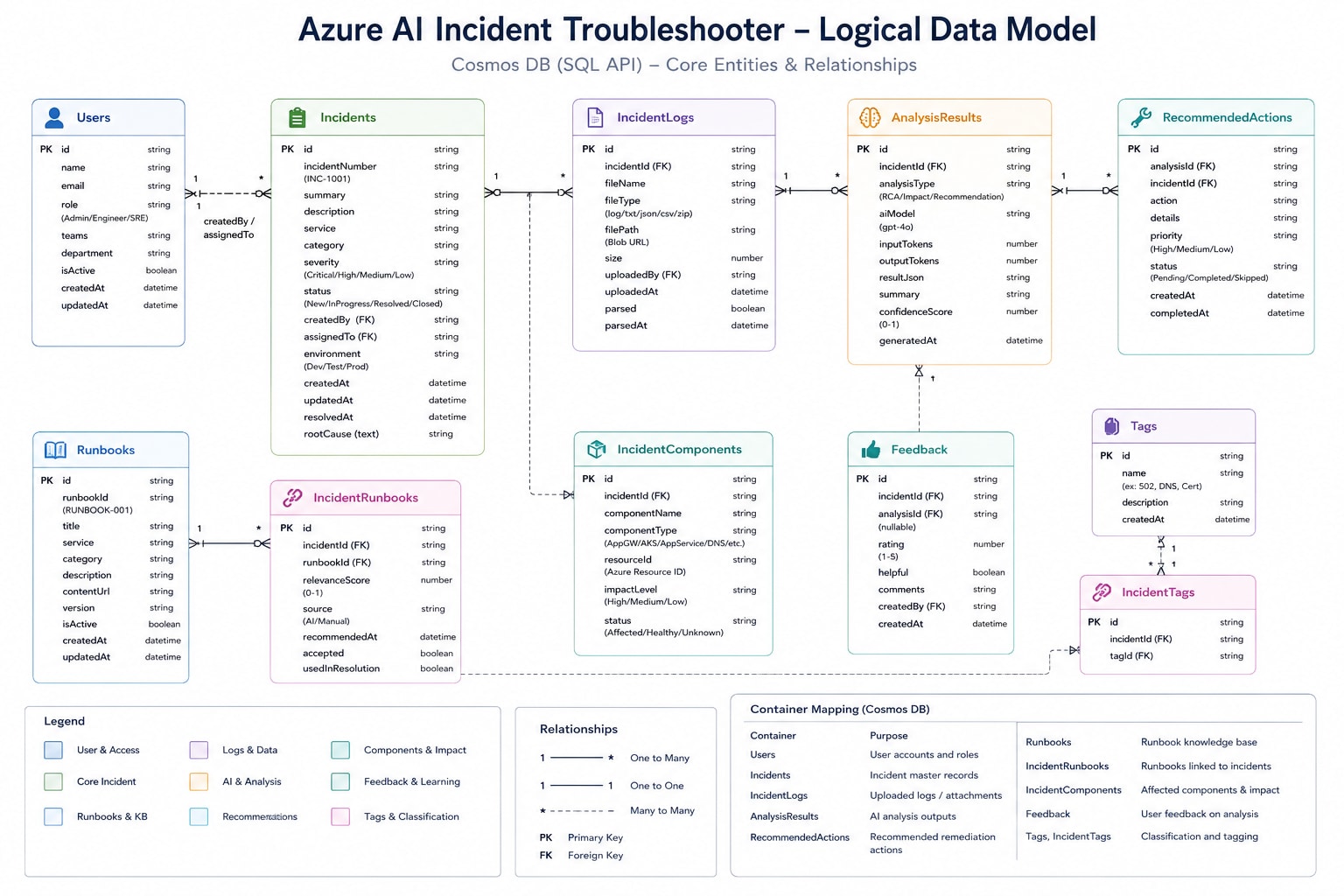

Phase 4: Pydantic models — referenced entity design

The original design embedded an AIAnalysis object inside the Incident document. This works when analysis results are small and stable, but it hits Cosmos DB's 2 MB document limit when incidents accumulate many log entries and recommended actions over time.

The referenced design uses separate containers per entity. Each related entity stores an incidentId field and is retrieved via cross-container queries when building the composite response.

# backend/app/models/enums.py
from enum import Enum

class Severity(str, Enum):
    CRITICAL = "critical"
    HIGH = "high"
    MEDIUM = "medium"
    LOW = "low"

class IncidentStatus(str, Enum):
    NEW = "New"
    IN_PROGRESS = "InProgress"
    RESOLVED = "Resolved"
    CLOSED = "Closed"
# backend/app/models/incident.py
from __future__ import annotations
from datetime import datetime
from typing import Optional
from pydantic import BaseModel, Field
import uuid
from .enums import Severity, IncidentStatus


class User(BaseModel):
    id: str = Field(default_factory=lambda: str(uuid.uuid4()))
    email: str
    displayName: str
    role: str  # "engineer" | "manager" | "readonly"
    createdAt: datetime = Field(default_factory=datetime.utcnow)


class IncidentCreate(BaseModel):
    title: str
    description: str
    severity: Severity
    affectedService: str
    affectedRegion: str
    reportedBy: str  # user id


class Incident(BaseModel):
    id: str = Field(default_factory=lambda: str(uuid.uuid4()))
    title: str
    description: str
    severity: Severity
    status: IncidentStatus = IncidentStatus.NEW
    affectedService: str
    affectedRegion: str
    reportedBy: str
    createdAt: datetime = Field(default_factory=datetime.utcnow)
    updatedAt: datetime = Field(default_factory=datetime.utcnow)
    resolvedAt: Optional[datetime] = None


class IncidentLog(BaseModel):
    id: str = Field(default_factory=lambda: str(uuid.uuid4()))
    incidentId: str
    message: str
    logLevel: str  # "info" | "warning" | "error"
    source: str    # e.g. "AKS node pool", "API Management"
    timestamp: datetime = Field(default_factory=datetime.utcnow)
    createdBy: str  # user id


class AnalysisResult(BaseModel):
    id: str = Field(default_factory=lambda: str(uuid.uuid4()))
    incidentId: str
    rootCauseSummary: str
    confidence: float  # 0.0 – 1.0; GPT-4o is instructed to express uncertainty
    retrievedRunbooks: list[str]  # runbook IDs used as context
    rawLlmResponse: str           # full GPT-4o output for audit trail
    analysedAt: datetime = Field(default_factory=datetime.utcnow)
    modelVersion: str = "gpt-4o-2024-11-20"


class RecommendedAction(BaseModel):
    id: str = Field(default_factory=lambda: str(uuid.uuid4()))
    incidentId: str
    analysisResultId: str
    priority: int   # 1 = highest; GPT-4o assigns 1–5
    title: str
    description: str
    estimatedMinutes: Optional[int] = None
    runbookReference: Optional[str] = None  # runbook ID if applicable
    status: str = "pending"  # "pending" | "in_progress" | "done" | "skipped"


class IncidentComponent(BaseModel):
    id: str = Field(default_factory=lambda: str(uuid.uuid4()))
    incidentId: str
    componentName: str
    componentType: str  # "AKS", "APIM", "CosmosDB", "OpenAI", etc.
    isAffected: bool
    notes: Optional[str] = None


class Runbook(BaseModel):
    id: str = Field(default_factory=lambda: str(uuid.uuid4()))
    title: str
    content: str          # full runbook text, chunked at index time
    service: str          # "AKS" | "CosmosDB" | "OpenAI" | ...
    tags: list[str] = []
    version: str = "1.0"
    createdAt: datetime = Field(default_factory=datetime.utcnow)
    updatedAt: datetime = Field(default_factory=datetime.utcnow)


class IncidentRunbook(BaseModel):
    """Junction entity: which runbooks were linked to which incident."""
    id: str = Field(default_factory=lambda: str(uuid.uuid4()))
    incidentId: str
    runbookId: str
    linkedAt: datetime = Field(default_factory=datetime.utcnow)
    linkedBy: str  # "ai" or user id


class Feedback(BaseModel):
    id: str = Field(default_factory=lambda: str(uuid.uuid4()))
    incidentId: str
    analysisResultId: str
    rating: int  # 1–5; used to fine-tune prompt engineering over time
    comment: Optional[str] = None
    createdBy: str
    createdAt: datetime = Field(default_factory=datetime.utcnow)


class Tag(BaseModel):
    id: str = Field(default_factory=lambda: str(uuid.uuid4()))
    name: str    # e.g. "networking", "storage", "authentication"
    colour: str  # hex colour for UI badge


class IncidentTag(BaseModel):
    """Junction entity: many-to-many between incidents and tags."""
    id: str = Field(default_factory=lambda: str(uuid.uuid4()))
    incidentId: str
    tagId: str


# Composite response model — assembled from multiple containers
class IncidentDetail(BaseModel):
    incident: Incident
    logs: list[IncidentLog] = []
    analysisResult: Optional[AnalysisResult] = None
    recommendedActions: list[RecommendedAction] = []
    components: list[IncidentComponent] = []
    linkedRunbooks: list[IncidentRunbook] = []
    tags: list[Tag] = []
    feedback: list[Feedback] = []

Honest trade-off: Referenced entities are not idiomatic Cosmos DB. Cosmos DB is optimised for point reads on a single document with a known partition key. Cross-container reads (retrieving all AnalysisResult documents for an incidentId) require a query scan, which is slower and more expensive than a point read on an embedded document. The referenced design is justified here because: (1) recommended actions can number in the dozens per incident, (2) incident logs can be unbounded, and (3) feedback and runbook links need to be queryable independently. For incidents that will never exceed ~20 analysed items, the embedded design is simpler and cheaper.


Phase 5: Configuration and secrets

# backend/app/config.py
from azure.identity import DefaultAzureCredential
from azure.keyvault.secrets import SecretClient
from pydantic_settings import BaseSettings
import os


class Settings(BaseSettings):
    cosmos_endpoint: str = ""
    cosmos_key: str = ""
    cosmos_database: str = "IncidentDB"
    openai_endpoint: str = ""
    openai_api_key: str = ""
    openai_embedding_deployment: str = "text-embedding-3-small"
    openai_chat_deployment: str = "gpt-4o"
    search_endpoint: str = ""
    search_key: str = ""
    search_index_name: str = "runbooks"
    key_vault_url: str = ""

    class Config:
        env_file = ".env"


def load_from_key_vault(settings: Settings) -> Settings:
    """Load secrets from Key Vault when running in Azure (Managed Identity available)."""
    if not settings.key_vault_url:
        return settings

    try:
        credential = DefaultAzureCredential()
        client = SecretClient(vault_url=settings.key_vault_url, credential=credential)

        secrets = {
            "cosmos-endpoint": "cosmos_endpoint",
            "cosmos-key": "cosmos_key",
            "openai-endpoint": "openai_endpoint",
            "openai-api-key": "openai_api_key",
            "search-endpoint": "search_endpoint",
            "search-key": "search_key",
        }

        for secret_name, attr in secrets.items():
            try:
                value = client.get_secret(secret_name).value
                object.__setattr__(settings, attr, value)
            except Exception:
                pass  # secret not present; environment variable takes precedence

    except Exception:
        # Managed Identity not available (local dev); use .env values
        pass

    return settings


_settings: Settings | None = None


def get_settings() -> Settings:
    global _settings
    if _settings is None:
        _settings = load_from_key_vault(Settings())
    return _settings

Phase 6: Cosmos DB — the logical data model

Logical data model: 11 Cosmos containers, referenced entities. Incident is the central aggregate; AnalysisResult and RecommendedAction are written after GPT-4o analysis; IncidentRunbook and IncidentTag are junction containers for many-to-many relationships.

Create all 11 containers with appropriate partition keys:

# incidents — partition key /id (each incident is its own logical partition)
az cosmosdb sql container create \
  --account-name cosmos-incident-prod \
  --resource-group $RESOURCE_GROUP \
  --database-name IncidentDB \
  --name incidents \
  --partition-key-path "/id" \
  --throughput 400

# incidentLogs — partition key /incidentId (all logs for one incident co-located)
az cosmosdb sql container create \
  --account-name cosmos-incident-prod \
  --resource-group $RESOURCE_GROUP \
  --database-name IncidentDB \
  --name incidentLogs \
  --partition-key-path "/incidentId" \
  --throughput 400

# analysisResults — partition key /incidentId (one analysis per incident, quick lookup)
az cosmosdb sql container create \
  --account-name cosmos-incident-prod \
  --resource-group $RESOURCE_GROUP \
  --database-name IncidentDB \
  --name analysisResults \
  --partition-key-path "/incidentId" \
  --throughput 400

# recommendedActions — partition key /incidentId (all actions for one incident together)
az cosmosdb sql container create \
  --account-name cosmos-incident-prod \
  --resource-group $RESOURCE_GROUP \
  --database-name IncidentDB \
  --name recommendedActions \
  --partition-key-path "/incidentId" \
  --throughput 400

# incidentComponents — partition key /incidentId
az cosmosdb sql container create \
  --account-name cosmos-incident-prod \
  --resource-group $RESOURCE_GROUP \
  --database-name IncidentDB \
  --name incidentComponents \
  --partition-key-path "/incidentId" \
  --throughput 400

# runbooks — partition key /id (point reads by runbook ID)
az cosmosdb sql container create \
  --account-name cosmos-incident-prod \
  --resource-group $RESOURCE_GROUP \
  --database-name IncidentDB \
  --name runbooks \
  --partition-key-path "/id" \
  --throughput 400

# incidentRunbooks — junction; partition key /incidentId
az cosmosdb sql container create \
  --account-name cosmos-incident-prod \
  --resource-group $RESOURCE_GROUP \
  --database-name IncidentDB \
  --name incidentRunbooks \
  --partition-key-path "/incidentId" \
  --throughput 400

# feedback — partition key /incidentId
az cosmosdb sql container create \
  --account-name cosmos-incident-prod \
  --resource-group $RESOURCE_GROUP \
  --database-name IncidentDB \
  --name feedback \
  --partition-key-path "/incidentId" \
  --throughput 400

# tags — partition key /id
az cosmosdb sql container create \
  --account-name cosmos-incident-prod \
  --resource-group $RESOURCE_GROUP \
  --database-name IncidentDB \
  --name tags \
  --partition-key-path "/id" \
  --throughput 400

# incidentTags — junction; partition key /incidentId
az cosmosdb sql container create \
  --account-name cosmos-incident-prod \
  --resource-group $RESOURCE_GROUP \
  --database-name IncidentDB \
  --name incidentTags \
  --partition-key-path "/incidentId" \
  --throughput 400

# users — partition key /id
az cosmosdb sql container create \
  --account-name cosmos-incident-prod \
  --resource-group $RESOURCE_GROUP \
  --database-name IncidentDB \
  --name users \
  --partition-key-path "/id" \
  --throughput 400

Partition key rationale:

  • Containers where you query "all items for an incident" (incidentLogs, analysisResults, recommendedActions, incidentComponents, incidentRunbooks, feedback, incidentTags) use /incidentId. This means all related documents land in the same logical partition — a single cross-document query within one partition is efficient and predictable.
  • Containers that are looked up by their own ID (incidents, runbooks, tags, users) use /id. These are point reads: you know the ID, you pay for exactly one RU fetch.
  • The only expensive operation in this design is building the IncidentDetail composite: it fires one query per related container (8 queries). At 400 RU/s per container, this is fine for low-volume incident management. At high volume, consider pre-materialising the composite into a read-optimised container using a Change Feed trigger.

Phase 7: Cosmos DB service layer

# backend/app/services/cosmos_service.py
from azure.cosmos.aio import CosmosClient
from azure.cosmos import exceptions as cosmos_exceptions
from typing import Any, Optional
from ..config import get_settings
from ..models.incident import (
    Incident, IncidentLog, AnalysisResult, RecommendedAction,
    IncidentComponent, IncidentRunbook, Feedback, Tag, IncidentTag,
    User, Runbook
)

# Container name → partition key field
CONTAINER_PARTITION_KEYS: dict[str, str] = {
    "incidents": "id",
    "incidentLogs": "incidentId",
    "analysisResults": "incidentId",
    "recommendedActions": "incidentId",
    "incidentComponents": "incidentId",
    "runbooks": "id",
    "incidentRunbooks": "incidentId",
    "feedback": "incidentId",
    "tags": "id",
    "incidentTags": "incidentId",
    "users": "id",
}


class CosmosService:
    def __init__(self):
        settings = get_settings()
        self._client = CosmosClient(settings.cosmos_endpoint, settings.cosmos_key)
        self._database_name = settings.cosmos_database
        self._db = None

    async def _get_container(self, container_name: str):
        if self._db is None:
            self._db = self._client.get_database_client(self._database_name)
        return self._db.get_container_client(container_name)

    async def upsert(self, container_name: str, item: Any) -> dict:
        """Upsert a Pydantic model into the named container."""
        container = await self._get_container(container_name)
        doc = item.model_dump(mode="json")
        return await container.upsert_item(doc)

    async def get_by_id(self, container_name: str, item_id: str, partition_key: str) -> Optional[dict]:
        try:
            container = await self._get_container(container_name)
            return await container.read_item(item=item_id, partition_key=partition_key)
        except cosmos_exceptions.CosmosResourceNotFoundError:
            return None

    async def list_by_incident(self, container_name: str, incident_id: str) -> list[dict]:
        """Return all documents in container_name where incidentId = incident_id."""
        container = await self._get_container(container_name)
        query = "SELECT * FROM c WHERE c.incidentId = @incidentId"
        parameters = [{"name": "@incidentId", "value": incident_id}]
        items = []
        async for item in container.query_items(
            query=query,
            parameters=parameters,
            partition_key=incident_id,
        ):
            items.append(item)
        return items

    async def list_all(self, container_name: str, max_items: int = 100) -> list[dict]:
        """Scan all documents in a container — use sparingly (full partition scan)."""
        container = await self._get_container(container_name)
        items = []
        async for item in container.query_items(
            query="SELECT * FROM c ORDER BY c._ts DESC OFFSET 0 LIMIT @limit",
            parameters=[{"name": "@limit", "value": max_items}],
            enable_cross_partition_query=True,
        ):
            items.append(item)
        return items

    async def upsert_incident(self, incident: Incident) -> dict:
        return await self.upsert("incidents", incident)

    async def upsert_log(self, log: IncidentLog) -> dict:
        return await self.upsert("incidentLogs", log)

    async def upsert_analysis(self, result: AnalysisResult) -> dict:
        return await self.upsert("analysisResults", result)

    async def upsert_actions(self, actions: list[RecommendedAction]) -> list[dict]:
        return [await self.upsert("recommendedActions", a) for a in actions]

    async def upsert_component(self, component: IncidentComponent) -> dict:
        return await self.upsert("incidentComponents", component)

    async def upsert_runbook_link(self, link: IncidentRunbook) -> dict:
        return await self.upsert("incidentRunbooks", link)

    async def upsert_feedback(self, fb: Feedback) -> dict:
        return await self.upsert("feedback", fb)

    async def upsert_tag(self, tag: Tag) -> dict:
        return await self.upsert("tags", tag)

    async def upsert_incident_tag(self, it: IncidentTag) -> dict:
        return await self.upsert("incidentTags", it)

    async def close(self):
        await self._client.close()

Phase 8: Azure AI Search — runbook index

Before the RAG pipeline can retrieve runbooks, you need to create the search index and populate it with chunked runbook content.

# backend/app/services/search_service.py
from azure.search.documents.aio import SearchClient
from azure.search.documents.indexes.aio import SearchIndexClient
from azure.search.documents.indexes.models import (
    SearchIndex, SimpleField, SearchableField, SearchFieldDataType,
    VectorSearch, HnswAlgorithmConfiguration, VectorSearchProfile,
    SearchField, VectorSearchAlgorithmKind,
)
from azure.core.credentials import AzureKeyCredential
from ..config import get_settings


VECTOR_DIMENSIONS = 1536  # text-embedding-3-small output dimensions


async def create_runbook_index() -> None:
    """Create the runbooks vector search index if it does not already exist."""
    settings = get_settings()
    credential = AzureKeyCredential(settings.search_key)
    async with SearchIndexClient(settings.search_endpoint, credential) as client:
        fields = [
            SimpleField(name="id", type=SearchFieldDataType.String, key=True),
            SearchableField(name="title", type=SearchFieldDataType.String),
            SearchableField(name="content", type=SearchFieldDataType.String),
            SimpleField(name="service", type=SearchFieldDataType.String, filterable=True),
            SimpleField(name="runbookId", type=SearchFieldDataType.String),
            SearchField(
                name="contentVector",
                type=SearchFieldDataType.Collection(SearchFieldDataType.Single),
                searchable=True,
                vector_search_dimensions=VECTOR_DIMENSIONS,
                vector_search_profile_name="hnswProfile",
            ),
        ]

        vector_search = VectorSearch(
            algorithms=[HnswAlgorithmConfiguration(name="hnswConfig")],
            profiles=[VectorSearchProfile(name="hnswProfile", algorithm_configuration_name="hnswConfig")],
        )

        index = SearchIndex(
            name=settings.search_index_name,
            fields=fields,
            vector_search=vector_search,
        )

        await client.create_or_update_index(index)


async def search_runbooks(query: str, query_vector: list[float], top: int = 5) -> list[dict]:
    """Hybrid search: BM25 keyword + vector similarity, return top-k results."""
    settings = get_settings()
    from azure.search.documents.models import VectorizedQuery
    credential = AzureKeyCredential(settings.search_key)
    async with SearchClient(settings.search_endpoint, settings.search_index_name, credential) as client:
        vector_query = VectorizedQuery(
            vector=query_vector,
            k_nearest_neighbors=top,
            fields="contentVector",
        )
        results = await client.search(
            search_text=query,
            vector_queries=[vector_query],
            select=["id", "title", "content", "service", "runbookId"],
            top=top,
        )
        return [r async for r in results]

Index a runbook (call this after provisioning the index, for each runbook in your library):

async def index_runbook_chunks(runbook_id: str, title: str, content: str, service: str) -> None:
    """Chunk a runbook and upload all chunks to AI Search."""
    from langchain.text_splitter import RecursiveCharacterTextSplitter
    settings = get_settings()
    from openai import AsyncAzureOpenAI

    openai_client = AsyncAzureOpenAI(
        azure_endpoint=settings.openai_endpoint,
        api_key=settings.openai_api_key,
        api_version="2024-02-01",
    )

    splitter = RecursiveCharacterTextSplitter(chunk_size=512, chunk_overlap=64)
    chunks = splitter.split_text(content)

    documents = []
    for i, chunk in enumerate(chunks):
        embedding_response = await openai_client.embeddings.create(
            model=settings.openai_embedding_deployment,
            input=chunk,
        )
        embedding = embedding_response.data[0].embedding

        documents.append({
            "id": f"{runbook_id}-chunk-{i}",
            "title": title,
            "content": chunk,
            "service": service,
            "runbookId": runbook_id,
            "contentVector": embedding,
        })

    credential = AzureKeyCredential(settings.search_key)
    async with SearchClient(settings.search_endpoint, settings.search_index_name, credential) as client:
        await client.upload_documents(documents)

Phase 9: RAG service — analysis pipeline

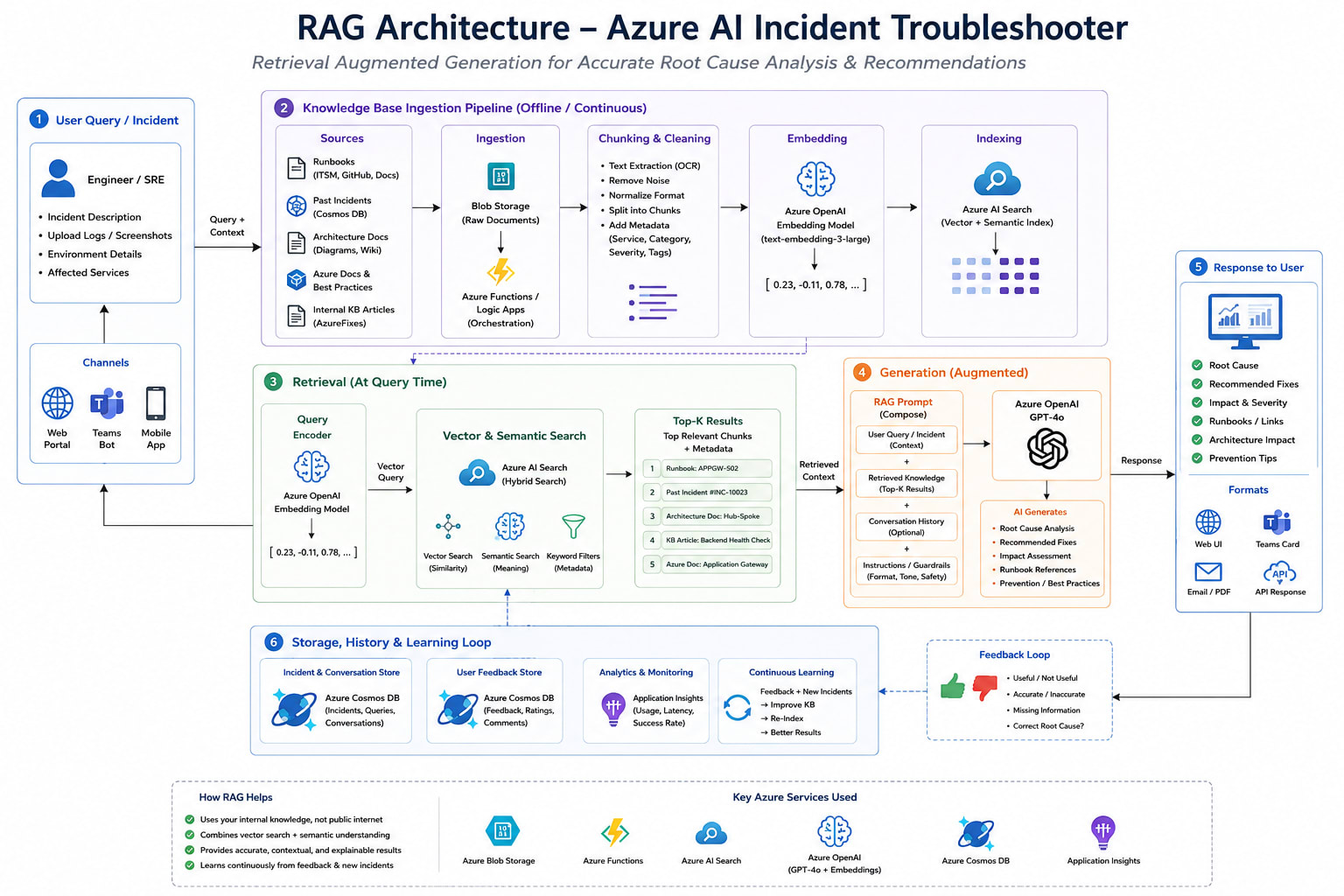

The RAG pipeline as a diagram

RAG pipeline: embed → hybrid search → prompt assembly → GPT-4o → parse → split write to two Cosmos containers.
# backend/app/services/rag_service.py
import json
from openai import AsyncAzureOpenAI
from ..config import get_settings
from ..models.incident import Incident, AnalysisResult, RecommendedAction
from .search_service import search_runbooks
import uuid
from datetime import datetime


SYSTEM_PROMPT = """You are an Azure infrastructure incident analyst.
Given an incident description and relevant runbook excerpts, analyse the most likely root cause
and recommend prioritised remediation steps.

Rules:
- If you are uncertain, say so explicitly. Do not fabricate root causes.
- Express your confidence as a float between 0.0 and 1.0.
- List recommended actions in order of priority (1 = highest).
- If a runbook excerpt directly addresses the issue, reference its runbook ID in the action.
- Return ONLY valid JSON — no markdown, no prose outside the JSON.

JSON schema:
{
  "rootCauseSummary": "string",
  "confidence": 0.0,
  "recommendedActions": [
    {
      "priority": 1,
      "title": "string",
      "description": "string",
      "estimatedMinutes": null,
      "runbookReference": null
    }
  ]
}"""


async def analyse_incident(
    incident: Incident,
    openai_client: AsyncAzureOpenAI,
) -> tuple[AnalysisResult, list[RecommendedAction]]:
    """
    Embed the incident, retrieve top runbook chunks, call GPT-4o, and return
    (AnalysisResult, list[RecommendedAction]). Raises ValueError if GPT-4o
    returns malformed JSON or if the confidence field is missing.
    """
    settings = get_settings()

    # 1. Embed the incident description
    incident_text = f"{incident.title}\n\n{incident.description}\nAffected service: {incident.affectedService}\nSeverity: {incident.severity}"
    embedding_response = await openai_client.embeddings.create(
        model=settings.openai_embedding_deployment,
        input=incident_text,
    )
    query_vector = embedding_response.data[0].embedding

    # 2. Hybrid search — retrieve top-5 runbook chunks
    search_results = await search_runbooks(
        query=incident_text,
        query_vector=query_vector,
        top=5,
    )

    retrieved_runbook_ids = list({r["runbookId"] for r in search_results})

    # 3. Assemble prompt
    context_blocks = []
    for r in search_results:
        context_blocks.append(
            f"[Runbook: {r['title']} | Service: {r['service']} | ID: {r['runbookId']}]\n{r['content']}"
        )
    context_text = "\n\n---\n\n".join(context_blocks)

    messages = [
        {"role": "system", "content": SYSTEM_PROMPT},
        {
            "role": "user",
            "content": (
                f"## Incident\n"
                f"Title: {incident.title}\n"
                f"Severity: {incident.severity}\n"
                f"Affected service: {incident.affectedService}\n"
                f"Affected region: {incident.affectedRegion}\n"
                f"Description:\n{incident.description}\n\n"
                f"## Retrieved runbook context\n{context_text}"
            ),
        },
    ]

    # 4. Call GPT-4o
    completion = await openai_client.chat.completions.create(
        model=settings.openai_chat_deployment,
        messages=messages,
        temperature=0,
        response_format={"type": "json_object"},
    )
    raw_response = completion.choices[0].message.content

    # 5. Parse response
    try:
        parsed = json.loads(raw_response)
    except json.JSONDecodeError as e:
        raise ValueError(f"GPT-4o returned invalid JSON: {e}\nRaw: {raw_response[:500]}")

    if "confidence" not in parsed or "rootCauseSummary" not in parsed:
        raise ValueError(f"GPT-4o response missing required fields. Raw: {raw_response[:500]}")

    analysis_id = str(uuid.uuid4())

    analysis_result = AnalysisResult(
        id=analysis_id,
        incidentId=incident.id,
        rootCauseSummary=parsed["rootCauseSummary"],
        confidence=float(parsed["confidence"]),
        retrievedRunbooks=retrieved_runbook_ids,
        rawLlmResponse=raw_response,
        analysedAt=datetime.utcnow(),
    )

    recommended_actions = []
    for action_data in parsed.get("recommendedActions", []):
        recommended_actions.append(
            RecommendedAction(
                incidentId=incident.id,
                analysisResultId=analysis_id,
                priority=int(action_data.get("priority", 99)),
                title=action_data.get("title", "Unnamed action"),
                description=action_data.get("description", ""),
                estimatedMinutes=action_data.get("estimatedMinutes"),
                runbookReference=action_data.get("runbookReference"),
            )
        )

    # Sort by priority ascending (1 = most urgent)
    recommended_actions.sort(key=lambda a: a.priority)

    return analysis_result, recommended_actions

Phase 10: FastAPI application and incidents route

# backend/app/main.py
from contextlib import asynccontextmanager
from fastapi import FastAPI
from fastapi.middleware.cors import CORSMiddleware
from openai import AsyncAzureOpenAI
from .config import get_settings
from .services.cosmos_service import CosmosService
from .services.search_service import create_runbook_index
from .routes import incidents

cosmos_service: CosmosService | None = None
openai_client: AsyncAzureOpenAI | None = None


@asynccontextmanager
async def lifespan(app: FastAPI):
    global cosmos_service, openai_client
    settings = get_settings()

    cosmos_service = CosmosService()
    openai_client = AsyncAzureOpenAI(
        azure_endpoint=settings.openai_endpoint,
        api_key=settings.openai_api_key,
        api_version="2024-02-01",
    )

    # Ensure AI Search index exists (idempotent)
    await create_runbook_index()

    yield

    if cosmos_service:
        await cosmos_service.close()
    if openai_client:
        await openai_client.close()


app = FastAPI(
    title="Azure AI Incident Troubleshooter API",
    version="2.0.0",
    lifespan=lifespan,
)

app.add_middleware(
    CORSMiddleware,
    allow_origins=["https://your-frontend.azurestaticapps.net"],
    allow_credentials=True,
    allow_methods=["*"],
    allow_headers=["*"],
)

app.include_router(incidents.router, prefix="/incidents", tags=["incidents"])


@app.get("/health")
async def health():
    return {"status": "ok", "version": "2.0.0"}
# backend/app/routes/incidents.py
from fastapi import APIRouter, HTTPException, Request
from ..models.incident import (
    IncidentCreate, Incident, IncidentDetail,
    AnalysisResult, RecommendedAction
)
from ..services.rag_service import analyse_incident
import main as app_module

router = APIRouter()


def _get_cosmos():
    if app_module.cosmos_service is None:
        raise HTTPException(503, "Cosmos service not initialised")
    return app_module.cosmos_service


def _get_openai():
    if app_module.openai_client is None:
        raise HTTPException(503, "OpenAI client not initialised")
    return app_module.openai_client


@router.post("/", response_model=IncidentDetail, status_code=201)
async def create_incident(payload: IncidentCreate):
    """
    Create an incident, run AI analysis, write results to three containers
    (incidents, analysisResults, recommendedActions), and return IncidentDetail.
    """
    cosmos = _get_cosmos()
    openai = _get_openai()

    # Write incident
    incident = Incident(**payload.model_dump())
    await cosmos.upsert_incident(incident)

    # Run AI analysis — may raise ValueError if GPT-4o response is malformed
    try:
        analysis_result, recommended_actions = await analyse_incident(incident, openai)
    except ValueError as e:
        # Analysis failed — return the incident with empty analysis rather than 500
        return IncidentDetail(incident=incident)

    # Write analysis and actions to separate containers
    await cosmos.upsert_analysis(analysis_result)
    await cosmos.upsert_actions(recommended_actions)

    return IncidentDetail(
        incident=incident,
        analysisResult=analysis_result,
        recommendedActions=recommended_actions,
    )


@router.get("/{incident_id}", response_model=IncidentDetail)
async def get_incident(incident_id: str):
    """
    Fetch the composite IncidentDetail by assembling from multiple containers.
    Fires 1 point read (incidents) + up to 7 queries (related containers).
    """
    cosmos = _get_cosmos()

    # Point read for the incident itself
    incident_doc = await cosmos.get_by_id("incidents", incident_id, partition_key=incident_id)
    if not incident_doc:
        raise HTTPException(404, f"Incident {incident_id} not found")

    incident = Incident(**incident_doc)

    # Parallel reads across related containers
    import asyncio
    logs_docs, analysis_docs, action_docs, component_docs, link_docs, feedback_docs, tag_link_docs = \
        await asyncio.gather(
            cosmos.list_by_incident("incidentLogs", incident_id),
            cosmos.list_by_incident("analysisResults", incident_id),
            cosmos.list_by_incident("recommendedActions", incident_id),
            cosmos.list_by_incident("incidentComponents", incident_id),
            cosmos.list_by_incident("incidentRunbooks", incident_id),
            cosmos.list_by_incident("feedback", incident_id),
            cosmos.list_by_incident("incidentTags", incident_id),
        )

    from ..models.incident import (
        IncidentLog, IncidentComponent, IncidentRunbook, Feedback, IncidentTag, Tag
    )

    analysis_result = None
    if analysis_docs:
        analysis_result = AnalysisResult(**analysis_docs[0])

    # Resolve tags from incidentTags junction
    tags = []
    for it_doc in tag_link_docs:
        tag_doc = await cosmos.get_by_id("tags", it_doc["tagId"], partition_key=it_doc["tagId"])
        if tag_doc:
            tags.append(Tag(**tag_doc))

    return IncidentDetail(
        incident=incident,
        logs=[IncidentLog(**d) for d in logs_docs],
        analysisResult=analysis_result,
        recommendedActions=sorted(
            [RecommendedAction(**d) for d in action_docs],
            key=lambda a: a.priority,
        ),
        components=[IncidentComponent(**d) for d in component_docs],
        linkedRunbooks=[IncidentRunbook(**d) for d in link_docs],
        tags=tags,
        feedback=[Feedback(**d) for d in feedback_docs],
    )


@router.get("/", response_model=list[Incident])
async def list_incidents():
    """Return the 100 most recent incidents (cross-partition scan — avoid in hot paths)."""
    cosmos = _get_cosmos()
    docs = await cosmos.list_all("incidents", max_items=100)
    return [Incident(**d) for d in docs]

Phase 11: Backend requirements and Dockerfile

# backend/requirements.txt
fastapi==0.115.0
uvicorn[standard]==0.32.0
pydantic==2.9.2
pydantic-settings==2.5.2
azure-cosmos==4.7.0
azure-search-documents==11.6.0
azure-identity==1.19.0
azure-keyvault-secrets==4.9.0
openai==1.55.3
langchain-text-splitters==0.3.0
# backend/Dockerfile
FROM python:3.12-slim AS builder
WORKDIR /app
COPY requirements.txt .
RUN pip install --no-cache-dir --upgrade pip && \
    pip install --no-cache-dir -r requirements.txt

FROM python:3.12-slim
WORKDIR /app
COPY --from=builder /usr/local/lib/python3.12/site-packages /usr/local/lib/python3.12/site-packages
COPY --from=builder /usr/local/bin /usr/local/bin
COPY app/ ./app/
EXPOSE 8000
CMD ["uvicorn", "app.main:app", "--host", "0.0.0.0", "--port", "8000"]

Phase 12: Next.js frontend

Incident list page

// frontend/app/page.tsx
import Link from 'next/link'
import { getIncidents } from '@/lib/api'
import IncidentCard from '@/components/IncidentCard'

export default async function IncidentsPage() {
  const incidents = await getIncidents()

  return (
    <main className="max-w-4xl mx-auto px-4 py-8">
      <div className="flex items-center justify-between mb-8">
        <h1 className="text-2xl font-bold text-gray-900 dark:text-white">
          Incident Dashboard
        </h1>
        <Link
          href="/incidents/new"
          className="px-4 py-2 bg-blue-600 text-white rounded-lg hover:bg-blue-700 transition-colors"
        >
          + New Incident
        </Link>
      </div>

      {incidents.length === 0 ? (
        <p className="text-gray-500 dark:text-gray-400">No incidents reported yet.</p>
      ) : (
        <div className="space-y-4">
          {incidents.map((incident) => (
            <IncidentCard key={incident.id} incident={incident} />
          ))}
        </div>
      )}
    </main>
  )
}

IncidentDetail page — recommended actions with priority badges

// frontend/app/incidents/[id]/page.tsx
import { notFound } from 'next/navigation'
import { getIncidentDetail } from '@/lib/api'
import type { IncidentDetail, RecommendedAction } from '@/lib/types'

interface Props {
  params: Promise<{ id: string }>
}

const priorityConfig: Record<number, { label: string; colour: string }> = {
  1: { label: 'P1 — Critical', colour: 'bg-red-100 text-red-800 border-red-200' },
  2: { label: 'P2 — High',     colour: 'bg-orange-100 text-orange-800 border-orange-200' },
  3: { label: 'P3 — Medium',   colour: 'bg-yellow-100 text-yellow-800 border-yellow-200' },
  4: { label: 'P4 — Low',      colour: 'bg-blue-100 text-blue-800 border-blue-200' },
  5: { label: 'P5 — Backlog',  colour: 'bg-gray-100 text-gray-600 border-gray-200' },
}

function PriorityBadge({ priority }: { priority: number }) {
  const config = priorityConfig[priority] ?? priorityConfig[5]
  return (
    <span className={`inline-block text-xs font-semibold px-2 py-0.5 rounded border ${config.colour}`}>
      {config.label}
    </span>
  )
}

function ActionCard({ action }: { action: RecommendedAction }) {
  return (
    <div className="border border-gray-200 dark:border-gray-700 rounded-lg p-4">
      <div className="flex items-start gap-3">
        <PriorityBadge priority={action.priority} />
        {action.estimatedMinutes && (
          <span className="text-xs text-gray-500 mt-0.5">{action.estimatedMinutes} min</span>
        )}
      </div>
      <h3 className="font-semibold text-gray-900 dark:text-white mt-2">{action.title}</h3>
      <p className="text-sm text-gray-600 dark:text-gray-300 mt-1">{action.description}</p>
      {action.runbookReference && (
        <p className="text-xs text-blue-600 dark:text-blue-400 mt-2">
          Runbook: {action.runbookReference}
        </p>
      )}
    </div>
  )
}

const severityColours: Record<string, string> = {
  critical: 'bg-red-100 text-red-800',
  high:     'bg-orange-100 text-orange-800',
  medium:   'bg-yellow-100 text-yellow-800',
  low:      'bg-blue-100 text-blue-800',
}

export default async function IncidentDetailPage({ params }: Props) {
  const { id } = await params
  const detail = await getIncidentDetail(id)

  if (!detail) notFound()

  const { incident, analysisResult, recommendedActions, logs, tags } = detail

  return (
    <main className="max-w-4xl mx-auto px-4 py-8 space-y-8">
      {/* Header */}
      <div>
        <div className="flex items-center gap-3 mb-2">
          <span className={`text-xs font-bold px-2 py-0.5 rounded uppercase ${severityColours[incident.severity] ?? 'bg-gray-100 text-gray-700'}`}>
            {incident.severity}
          </span>
          <span className="text-xs text-gray-500">{incident.status}</span>
        </div>
        <h1 className="text-2xl font-bold text-gray-900 dark:text-white">{incident.title}</h1>
        <p className="text-sm text-gray-500 mt-1">
          {incident.affectedService} · {incident.affectedRegion}
        </p>
        {tags.length > 0 && (
          <div className="flex gap-2 mt-2">
            {tags.map((tag) => (
              <span
                key={tag.id}
                className="text-xs px-2 py-0.5 rounded-full border"
                style={{ borderColor: tag.colour, color: tag.colour }}
              >
                {tag.name}
              </span>
            ))}
          </div>
        )}
      </div>

      {/* Description */}
      <section>
        <h2 className="text-lg font-semibold text-gray-900 dark:text-white mb-2">Description</h2>
        <p className="text-gray-600 dark:text-gray-300 whitespace-pre-wrap">{incident.description}</p>
      </section>

      {/* AI Analysis */}
      {analysisResult ? (
        <section>
          <h2 className="text-lg font-semibold text-gray-900 dark:text-white mb-2">AI Analysis</h2>
          <div className="bg-blue-50 dark:bg-blue-950 border border-blue-200 dark:border-blue-800 rounded-lg p-4">
            <p className="text-gray-800 dark:text-gray-100">{analysisResult.rootCauseSummary}</p>
            <p className="text-xs text-gray-500 mt-2">
              Confidence: {Math.round(analysisResult.confidence * 100)}% ·{' '}
              Model: {analysisResult.modelVersion}
            </p>
            {analysisResult.confidence < 0.6 && (
              <p className="text-xs text-amber-600 mt-1">
                Low confidence — manual investigation recommended before acting on these recommendations.
              </p>
            )}
          </div>
        </section>
      ) : (
        <section>
          <h2 className="text-lg font-semibold text-gray-900 dark:text-white mb-2">AI Analysis</h2>
          <p className="text-gray-500">Analysis not yet available for this incident.</p>
        </section>
      )}

      {/* Recommended Actions */}
      {recommendedActions.length > 0 && (
        <section>
          <h2 className="text-lg font-semibold text-gray-900 dark:text-white mb-3">
            Recommended Actions ({recommendedActions.length})
          </h2>
          <div className="space-y-3">
            {recommendedActions.map((action) => (
              <ActionCard key={action.id} action={action} />
            ))}
          </div>
        </section>
      )}

      {/* Recent Logs */}
      {logs.length > 0 && (
        <section>
          <h2 className="text-lg font-semibold text-gray-900 dark:text-white mb-3">
            Incident Logs ({logs.length})
          </h2>
          <div className="space-y-2 font-mono text-xs">
            {logs.slice(0, 20).map((log) => (
              <div key={log.id} className="flex gap-3 text-gray-600 dark:text-gray-300">
                <span className="text-gray-400 shrink-0">
                  {new Date(log.timestamp).toISOString().slice(11, 19)}
                </span>
                <span className={
                  log.logLevel === 'error' ? 'text-red-500' :
                  log.logLevel === 'warning' ? 'text-amber-500' : 'text-gray-500'
                }>
                  [{log.logLevel.toUpperCase()}]
                </span>
                <span>[{log.source}]</span>
                <span>{log.message}</span>
              </div>
            ))}
            {logs.length > 20 && (
              <p className="text-gray-400">{logs.length - 20} more log entries not shown.</p>
            )}
          </div>
        </section>
      )}
    </main>
  )
}

API types

// frontend/lib/types.ts
export interface Incident {
  id: string
  title: string
  description: string
  severity: 'critical' | 'high' | 'medium' | 'low'
  status: 'New' | 'InProgress' | 'Resolved' | 'Closed'
  affectedService: string
  affectedRegion: string
  reportedBy: string
  createdAt: string
  updatedAt: string
  resolvedAt?: string
}

export interface AnalysisResult {
  id: string
  incidentId: string
  rootCauseSummary: string
  confidence: number
  retrievedRunbooks: string[]
  modelVersion: string
  analysedAt: string
}

export interface RecommendedAction {
  id: string
  incidentId: string
  analysisResultId: string
  priority: number
  title: string
  description: string
  estimatedMinutes?: number
  runbookReference?: string
  status: string
}

export interface IncidentLog {
  id: string
  incidentId: string
  message: string
  logLevel: 'info' | 'warning' | 'error'
  source: string
  timestamp: string
}

export interface Tag {
  id: string
  name: string
  colour: string
}

export interface IncidentDetail {
  incident: Incident
  logs: IncidentLog[]
  analysisResult?: AnalysisResult
  recommendedActions: RecommendedAction[]
  components: unknown[]
  linkedRunbooks: unknown[]
  tags: Tag[]
  feedback: unknown[]
}
// frontend/lib/api.ts
import type { Incident, IncidentDetail } from './types'

const API_URL = process.env.NEXT_PUBLIC_API_URL ?? 'http://localhost:8000'

export async function getIncidents(): Promise<Incident[]> {
  const res = await fetch(`${API_URL}/incidents/`, {
    next: { revalidate: 30 },
  })
  if (!res.ok) return []
  return res.json()
}

export async function getIncidentDetail(id: string): Promise<IncidentDetail | null> {
  const res = await fetch(`${API_URL}/incidents/${id}`, {
    next: { revalidate: 0 },
  })
  if (res.status === 404) return null
  if (!res.ok) throw new Error(`Failed to fetch incident ${id}`)
  return res.json()
}

export async function createIncident(payload: {
  title: string
  description: string
  severity: string
  affectedService: string
  affectedRegion: string
  reportedBy: string
}): Promise<IncidentDetail> {
  const res = await fetch(`${API_URL}/incidents/`, {
    method: 'POST',
    headers: { 'Content-Type': 'application/json' },
    body: JSON.stringify(payload),
  })
  if (!res.ok) {
    const error = await res.text()
    throw new Error(`Failed to create incident: ${error}`)
  }
  return res.json()
}

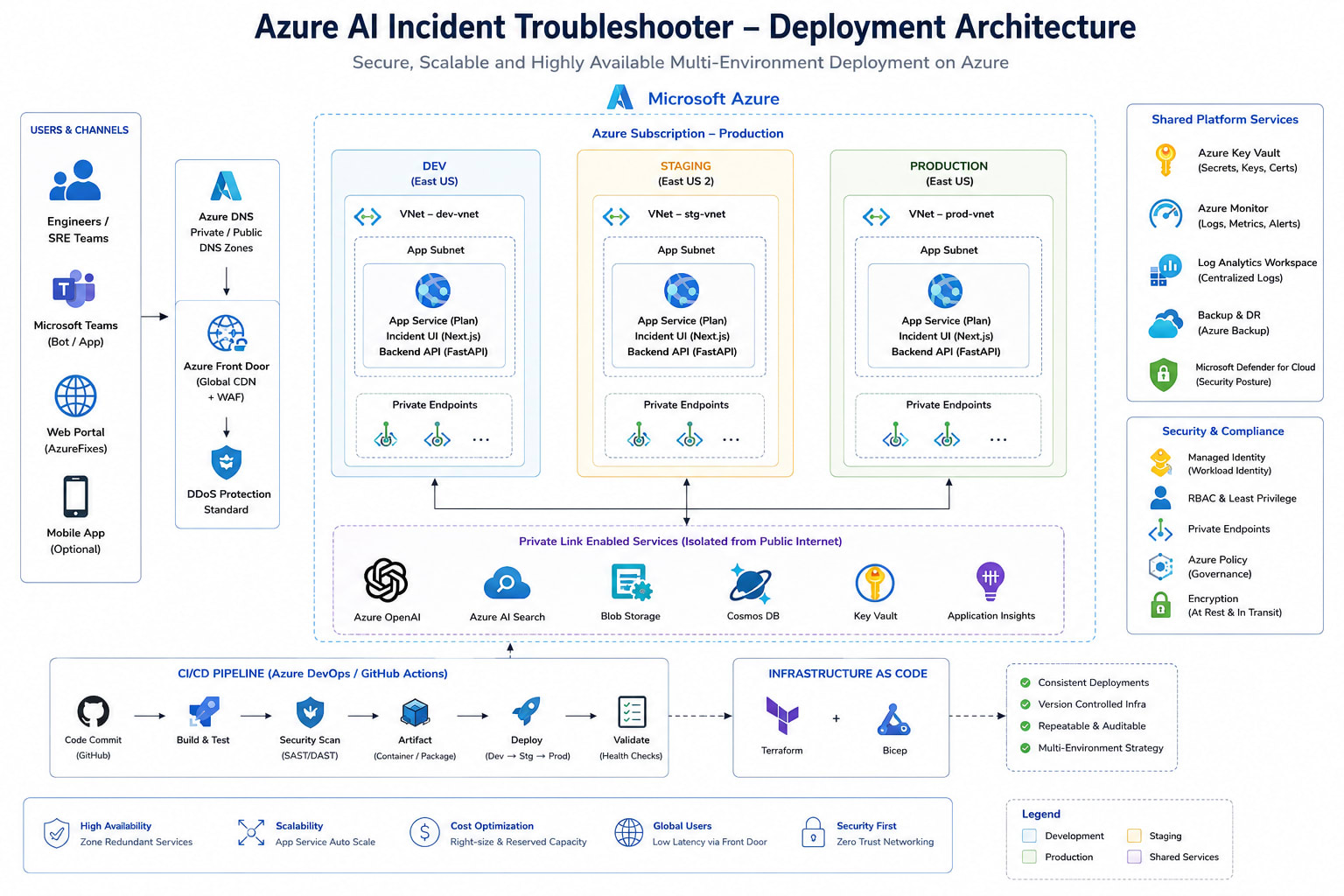

Phase 13: Deployment architecture

Three-environment deployment: Dev → Staging (manual approve gate) → Prod. Workload Identity replaces all client secrets. AKS → ACR → Helm release per environment.

Workload Identity setup

# 1. Enable OIDC issuer on AKS cluster
az aks update \
  --resource-group $RESOURCE_GROUP \
  --name aks-incident-prod \
  --enable-oidc-issuer \
  --enable-workload-identity

# 2. Get the OIDC issuer URL
OIDC_ISSUER=$(az aks show \
  --resource-group $RESOURCE_GROUP \
  --name aks-incident-prod \
  --query "oidcIssuerProfile.issuerUrl" -o tsv)

# 3. Create a Managed Identity for the backend pod
az identity create \
  --name id-incident-backend \
  --resource-group $RESOURCE_GROUP

MI_CLIENT_ID=$(az identity show \
  --name id-incident-backend \
  --resource-group $RESOURCE_GROUP \
  --query clientId -o tsv)

MI_PRINCIPAL_ID=$(az identity show \
  --name id-incident-backend \
  --resource-group $RESOURCE_GROUP \
  --query principalId -o tsv)

# 4. Create federated credential — binds AKS service account to Managed Identity
az identity federated-credential create \
  --name fc-incident-backend \
  --identity-name id-incident-backend \
  --resource-group $RESOURCE_GROUP \
  --issuer $OIDC_ISSUER \
  --subject "system:serviceaccount:incident-ns:incident-backend-sa" \
  --audience api://AzureADTokenExchange

# 5. Grant Managed Identity access to Key Vault secrets
KV_ID=$(az keyvault show --name kv-incident-prod --resource-group $RESOURCE_GROUP --query id -o tsv)
az role assignment create \
  --role "Key Vault Secrets User" \
  --assignee-object-id $MI_PRINCIPAL_ID \
  --scope $KV_ID

# 6. Grant Managed Identity access to Cosmos DB (built-in data contributor)
COSMOS_ID=$(az cosmosdb show --name cosmos-incident-prod --resource-group $RESOURCE_GROUP --query id -o tsv)
az role assignment create \
  --role "Cosmos DB Built-in Data Contributor" \
  --assignee-object-id $MI_PRINCIPAL_ID \
  --scope $COSMOS_ID

# 7. Grant access to Azure OpenAI
OAI_ID=$(az cognitiveservices account show --name oai-incident-prod --resource-group $RESOURCE_GROUP --query id -o tsv)
az role assignment create \
  --role "Cognitive Services OpenAI User" \
  --assignee-object-id $MI_PRINCIPAL_ID \
  --scope $OAI_ID

Helm chart

# helm/Chart.yaml
apiVersion: v2
name: incident-troubleshooter
description: Azure AI Incident Troubleshooter backend
version: 0.2.0
appVersion: "2.0.0"
# helm/templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: incident-backend
  namespace: incident-ns
spec:
  replicas: {{ .Values.replicaCount }}
  selector:
    matchLabels:
      app: incident-backend
  template:
    metadata:
      labels:
        app: incident-backend
        azure.workload.identity/use: "true"
    spec:
      serviceAccountName: incident-backend-sa
      containers:
        - name: api
          image: {{ .Values.image.repository }}:{{ .Values.image.tag }}
          ports:
            - containerPort: 8000
          env:
            - name: KEY_VAULT_URL
              value: {{ .Values.keyVaultUrl }}
          resources:
            requests:
              cpu: "250m"
              memory: "512Mi"
            limits:
              cpu: "1000m"
              memory: "1Gi"
          livenessProbe:
            httpGet:
              path: /health
              port: 8000
            initialDelaySeconds: 10
            periodSeconds: 30
          readinessProbe:
            httpGet:
              path: /health
              port: 8000
            initialDelaySeconds: 5
            periodSeconds: 10
# helm/templates/serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: incident-backend-sa
  namespace: incident-ns
  annotations:
    azure.workload.identity/client-id: {{ .Values.managedIdentityClientId }}

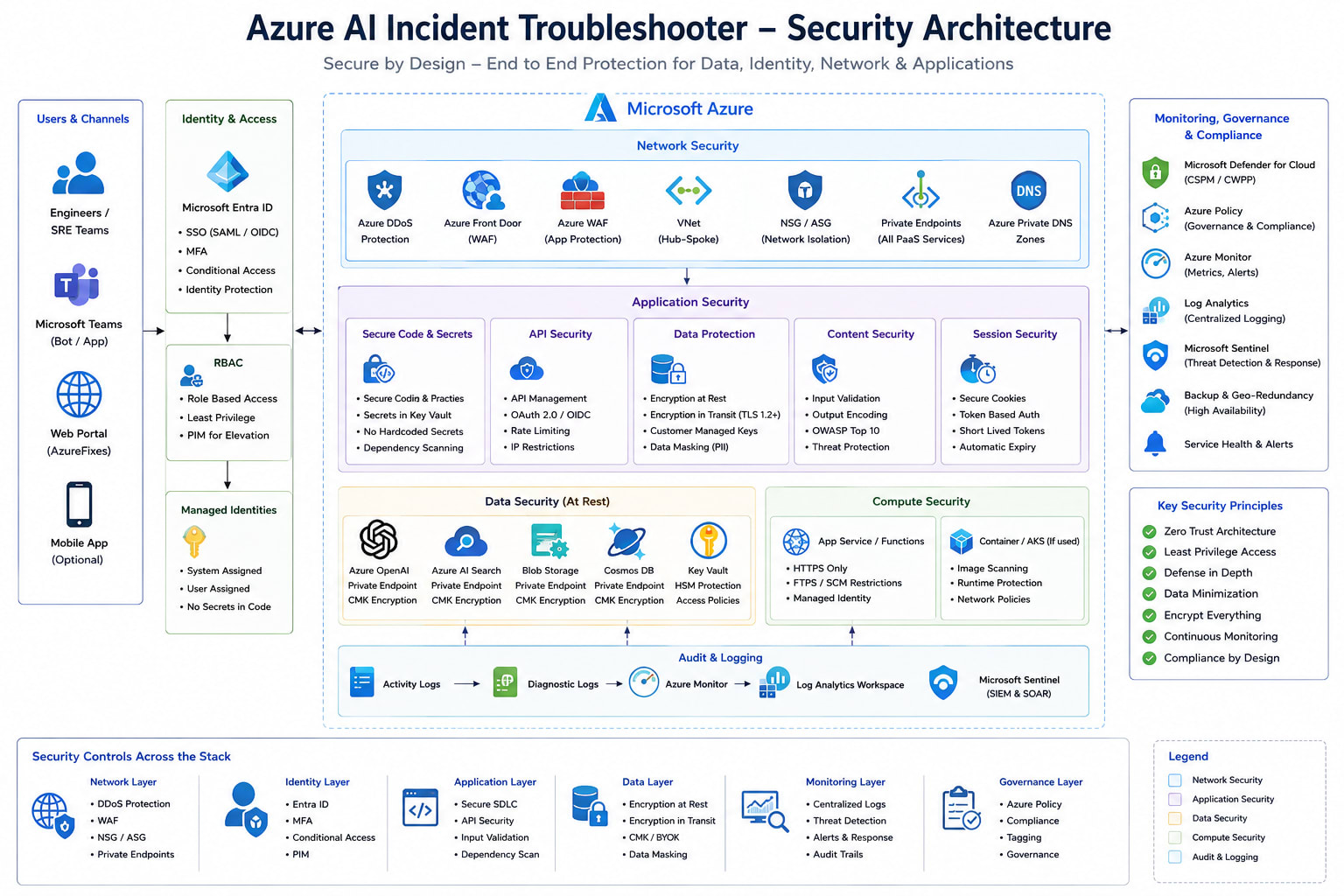

Phase 14: Security architecture

Defence in depth: WAF + APIM (network) → Workload Identity (identity) → Key Vault + private endpoints (data) → Pydantic + rate limiting + audit trail (application).

Key security decisions:

  1. No client secrets in code or environment variables. Key Vault holds all service credentials. Workload Identity lets the pod fetch them via OIDC federation — no COSMOS_KEY in the Kubernetes Secret manifest.

  2. Prompt injection awareness. The system prompt instructs GPT-4o to answer only from retrieved context and to flag uncertainty. For critical-severity incidents, route the incident description through Azure Content Safety before embedding to detect adversarial prompt injections in engineer-submitted text.

  3. Audit trail. The raw GPT-4o response is stored in AnalysisResult.rawLlmResponse. If an AI recommendation causes an incorrect remediation action, you can audit exactly what the model said. Do not delete this field.

  4. Private endpoints. Cosmos DB and AI Search data-plane endpoints are accessible only within the VNet. The AKS pod connects over a private IP. The public endpoint is disabled on both services.


Phase 15: CI/CD pipeline

# .github/workflows/ci.yml
name: CI

on:
  push:
    branches: [main, develop]
  pull_request:
    branches: [main]

jobs:
  lint-and-test:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4

      - name: Set up Python
        uses: actions/setup-python@v5
        with:
          python-version: '3.12'

      - name: Install dependencies
        run: pip install -r backend/requirements.txt pytest ruff

      - name: Lint
        run: ruff check backend/app/

      - name: Test
        run: pytest backend/tests/ -v

  build-and-push:
    needs: lint-and-test
    runs-on: ubuntu-latest
    if: github.ref == 'refs/heads/main'
    permissions:
      id-token: write
      contents: read
    steps:
      - uses: actions/checkout@v4

      - name: Login to Azure
        uses: azure/login@v2
        with:
          client-id: ${{ secrets.AZURE_CLIENT_ID }}
          tenant-id: ${{ secrets.AZURE_TENANT_ID }}
          subscription-id: ${{ secrets.AZURE_SUBSCRIPTION_ID }}

      - name: Login to ACR
        run: az acr login --name ${{ secrets.ACR_NAME }}

      - name: Build and push
        run: |
          IMAGE_TAG="${{ secrets.ACR_NAME }}.azurecr.io/incident-backend:${{ github.sha }}"
          docker build -t $IMAGE_TAG backend/
          docker push $IMAGE_TAG
          echo "IMAGE_TAG=$IMAGE_TAG" >> $GITHUB_ENV

      - name: Trivy scan
        uses: aquasecurity/trivy-action@master
        with:
          image-ref: ${{ env.IMAGE_TAG }}
          format: table
          exit-code: '1'
          severity: CRITICAL,HIGH
# .github/workflows/deploy.yml
name: Deploy

on:
  workflow_run:
    workflows: [CI]
    types: [completed]
    branches: [main]

jobs:
  deploy-staging:
    if: ${{ github.event.workflow_run.conclusion == 'success' }}
    runs-on: ubuntu-latest
    environment: staging
    steps:
      - uses: actions/checkout@v4

      - name: Login to Azure
        uses: azure/login@v2
        with:
          client-id: ${{ secrets.AZURE_CLIENT_ID }}
          tenant-id: ${{ secrets.AZURE_TENANT_ID }}
          subscription-id: ${{ secrets.AZURE_SUBSCRIPTION_ID }}

      - name: Set AKS context
        run: |
          az aks get-credentials \
            --resource-group rg-incident-staging \
            --name aks-incident-staging

      - name: Helm deploy staging
        run: |
          helm upgrade --install incident-troubleshooter ./helm \
            --namespace incident-ns \
            --create-namespace \
            --set image.repository=${{ secrets.ACR_NAME }}.azurecr.io/incident-backend \
            --set image.tag=${{ github.sha }} \
            --set keyVaultUrl=${{ secrets.KV_URL_STAGING }} \
            --set managedIdentityClientId=${{ secrets.MI_CLIENT_ID_STAGING }} \
            --wait --timeout 5m

  deploy-prod:
    needs: deploy-staging
    runs-on: ubuntu-latest
    environment: production  # requires manual approval in GitHub Environments
    steps:
      - uses: actions/checkout@v4

      - name: Login to Azure
        uses: azure/login@v2
        with:
          client-id: ${{ secrets.AZURE_CLIENT_ID }}
          tenant-id: ${{ secrets.AZURE_TENANT_ID }}
          subscription-id: ${{ secrets.AZURE_SUBSCRIPTION_ID }}

      - name: Set AKS context
        run: |
          az aks get-credentials \
            --resource-group rg-incident-prod \
            --name aks-incident-prod

      - name: Helm deploy prod
        run: |
          helm upgrade --install incident-troubleshooter ./helm \
            --namespace incident-ns \
            --create-namespace \
            --set image.repository=${{ secrets.ACR_NAME }}.azurecr.io/incident-backend \
            --set image.tag=${{ github.sha }} \
            --set keyVaultUrl=${{ secrets.KV_URL_PROD }} \
            --set managedIdentityClientId=${{ secrets.MI_CLIENT_ID_PROD }} \
            --set replicaCount=3 \
            --wait --timeout 10m

Phase 16: Cost estimates

These figures are approximate for a low-to-medium volume incident management tool (~500 incidents/month, 10–20 daily active engineers).

ServiceSKU / tierEstimated monthly cost
Azure OpenAI GPT-4o~50K input tokens + 10K output tokens/month~$5–15
Azure OpenAI text-embedding-3-small~100K tokens/month~$0.02
Azure AI SearchBasic (1 replica, 1 partition)~$75
Cosmos DB11 containers × 400 RU/s serverless is cheaper; manual 400 RU/s × 11 = $4.40/hrServerless: ~$10–30
AKS2× Standard_D2s_v3 nodes~$140
Azure Static Web AppsFree tier$0
Azure Front DoorStandard~$35
Azure Container RegistryBasic~$5
Key VaultStandard~$1
Total~$270–310/month

Cosmos DB provisioned throughput (400 RU/s × 11 containers) adds up quickly. For a tool used intermittently, switch all containers to serverless mode — cost scales to zero when idle and is typically 60–80% cheaper for low-volume workloads. The trade-off is no throughput guarantee and no multi-region writes in serverless mode.


Phase 17: Monitoring and alerting

# Create a Log Analytics workspace for AKS diagnostics
az monitor log-analytics workspace create \
  --resource-group $RESOURCE_GROUP \
  --workspace-name log-incident-prod \
  --location $LOCATION

# Enable Container Insights on AKS
AKS_ID=$(az aks show --name aks-incident-prod --resource-group $RESOURCE_GROUP --query id -o tsv)
LOG_ID=$(az monitor log-analytics workspace show --workspace-name log-incident-prod --resource-group $RESOURCE_GROUP --query id -o tsv)

az monitor diagnostic-settings create \
  --resource $AKS_ID \
  --name diag-aks-incident \
  --workspace $LOG_ID \
  --metrics '[{"category": "AllMetrics", "enabled": true}]' \
  --logs '[{"category": "kube-apiserver", "enabled": true}, {"category": "kube-controller-manager", "enabled": true}]'

Key metrics to alert on:

MetricAlert thresholdAction
GPT-4o error rate (5xx from OpenAI)> 5% in 5 minPage on-call; check OpenAI service health
Cosmos DB 429 (throttled)Any in 5 minScale up RU/s or switch to serverless
AI Search latency (p99)> 2000msCheck index fragmentation; consider Standard tier
AKS pod restart count> 3 in 10 minCheck OOM kills; increase memory limits
Analysis failure rate> 10% in 15 minCheck GPT-4o deployment; review SYSTEM_PROMPT

What you'd do differently in production

This guide makes several choices that are appropriate for learning but need revisiting before a production hardening review:

Cosmos DB serverless vs. provisioned throughput. The guide provisions 400 RU/s per container for simplicity. In production, audit actual usage patterns first. Most incident tools are bursty — serverless is cheaper unless you have sustained high traffic.

GPT-4o JSON mode reliability. response_format: {"type": "json_object"} reduces but does not eliminate malformed responses. Add a retry with exponential backoff (up to 3 attempts) before surfacing a parse error to the user.

The list_all cross-partition scan. The GET /incidents/ endpoint does a full cross-partition scan limited to 100 items. This is fine at low volume. At 10,000+ incidents, add a read-optimised index container (updated via Cosmos Change Feed) with summary fields only, sorted by createdAt.

Runbook versioning. When a runbook is updated, existing IncidentRunbook links still point to the old content. Either version runbooks explicitly (immutable chunks, new IDs on update) or add a runbookVersion field to the junction entity.

Confidence score calibration. GPT-4o's self-reported confidence is not calibrated. A score of 0.8 does not mean 80% accuracy. Treat it as a relative indicator (higher = model found strong runbook matches) rather than an absolute probability. Build a feedback loop using the Feedback entity to measure whether high-confidence recommendations actually resolved incidents.
